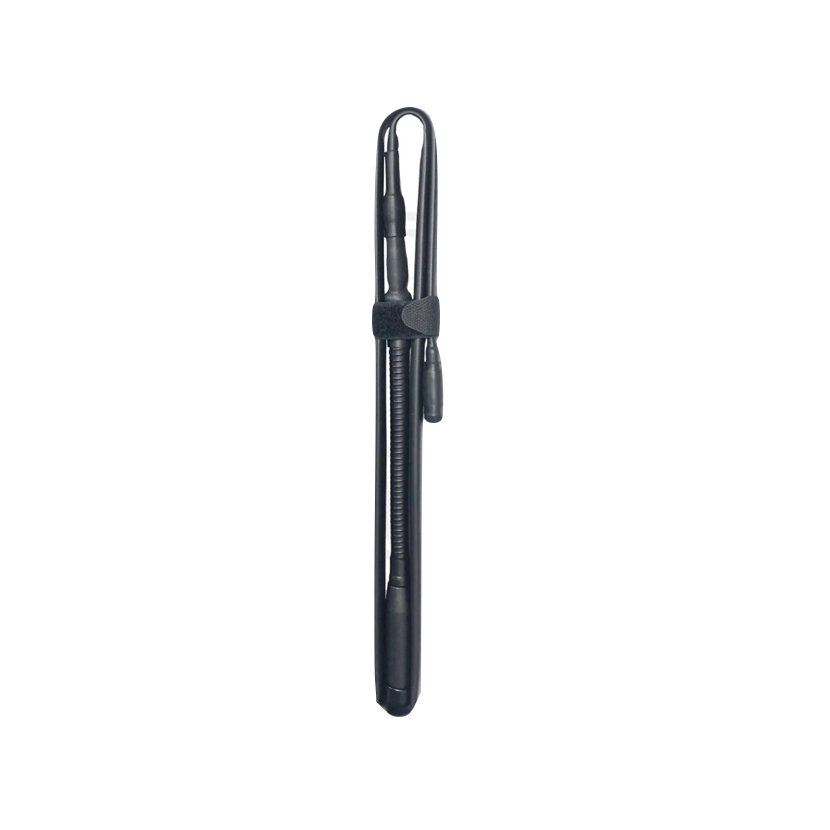

This made-in-the-usa long blade antenna is a rugged yet flexible blade-style antenna operating from 30-512 mhz.
It is 45" in length. It is designed for handheld applications and is submersible to 20 meters of water depth. These antennas are sometimes called "folding antennas" or "long whip antennas."
SPECIFICATIONS:
- Application: VHF/UHF Handheld Frequency, 30 – 512 MHz
- Impedance: 50 Ohms Nominal
- Gain: 30-60 MHz > -20dBi / 60-90 MHz > -10dBi / 90-174 MHz > -6dBi / 174-512 MHz > -4dBi
- VSWR: 3.0:1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: “TNC” Male
- Max Height: 45″
- RF Power Capacity: 8 Watt CW
- DC Resistance: Infinite
