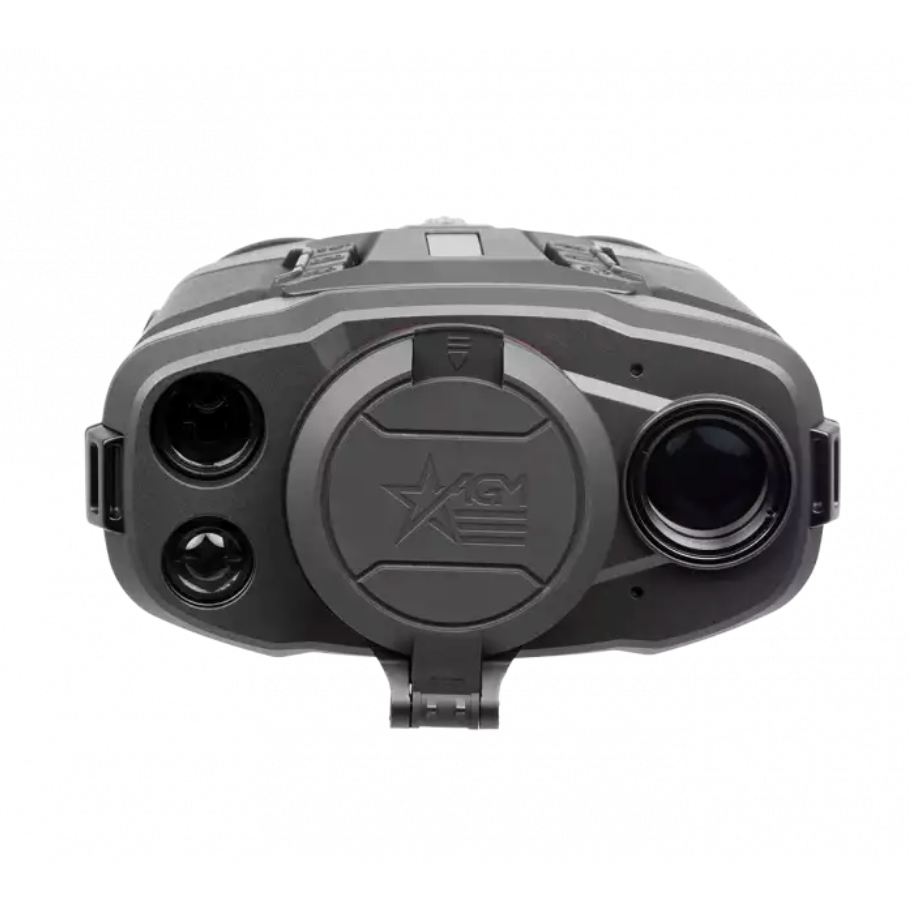

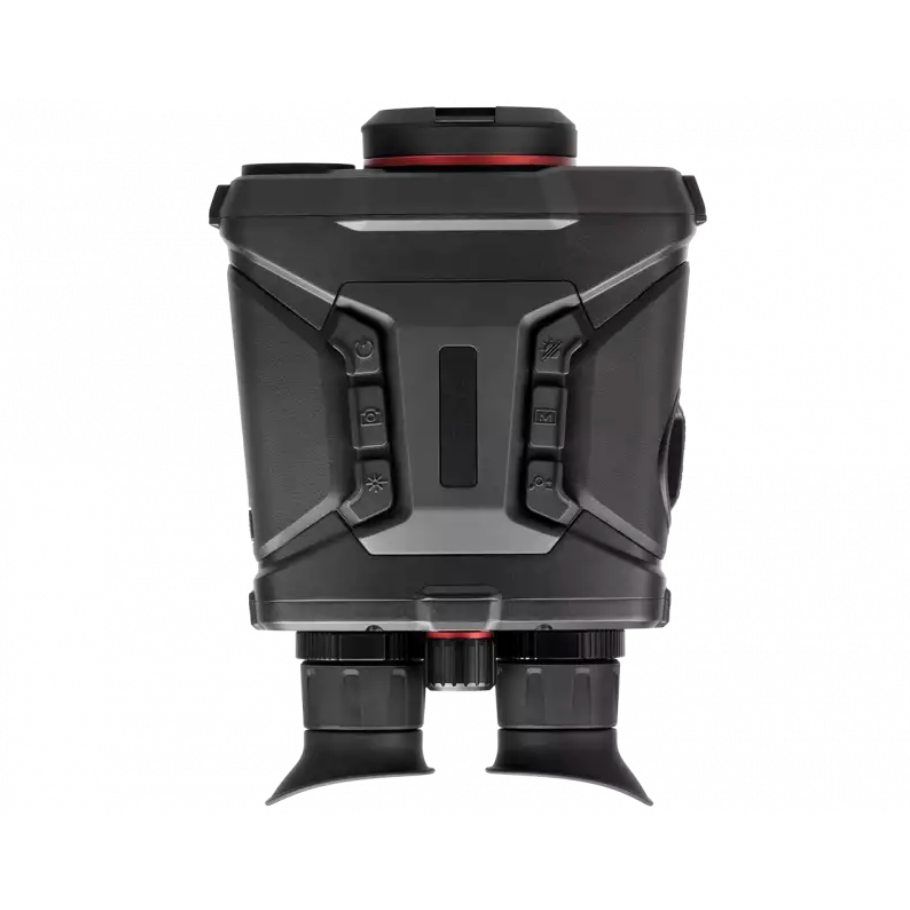

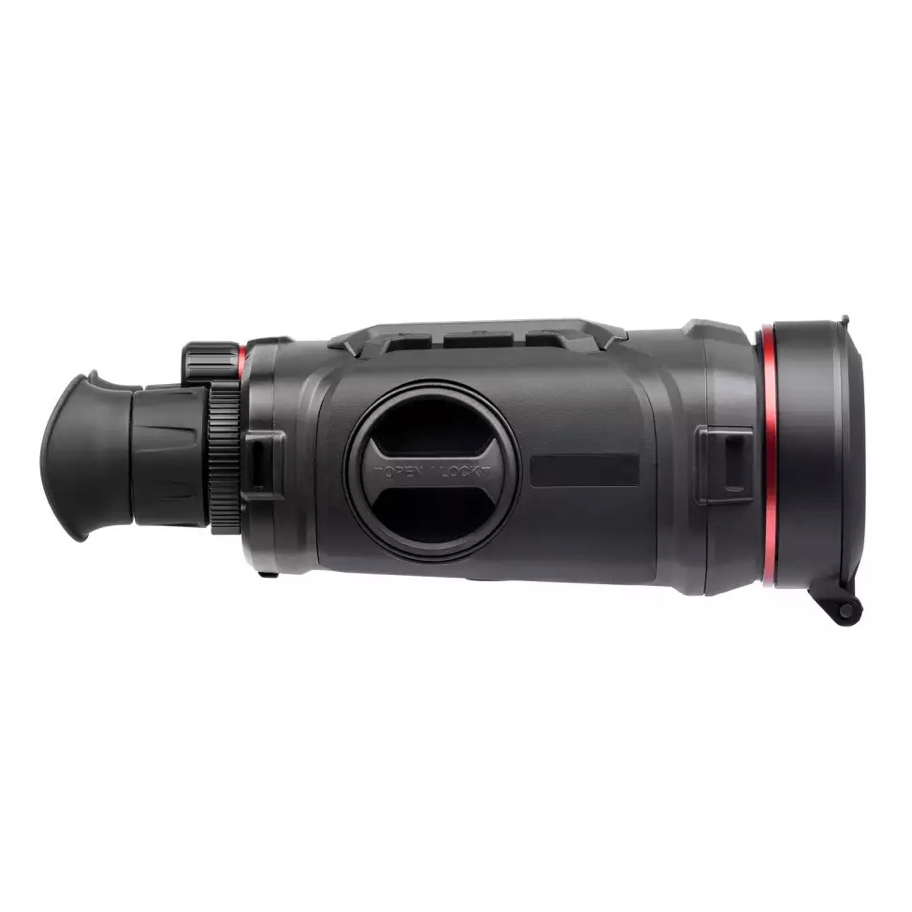

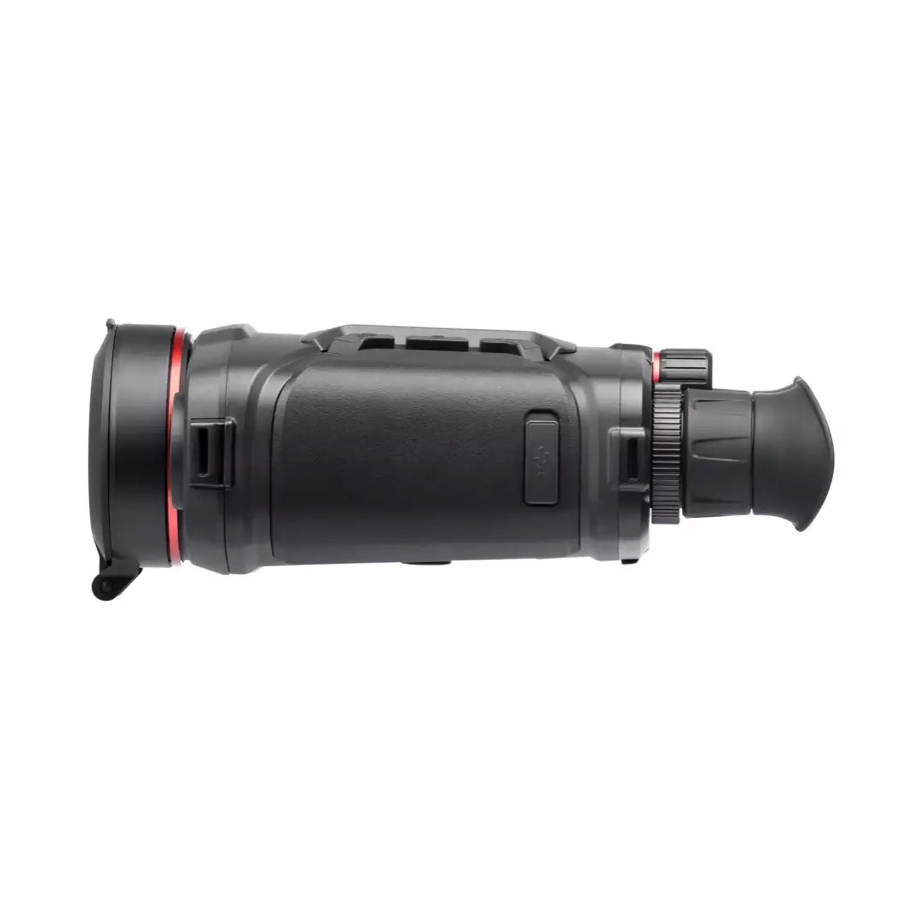

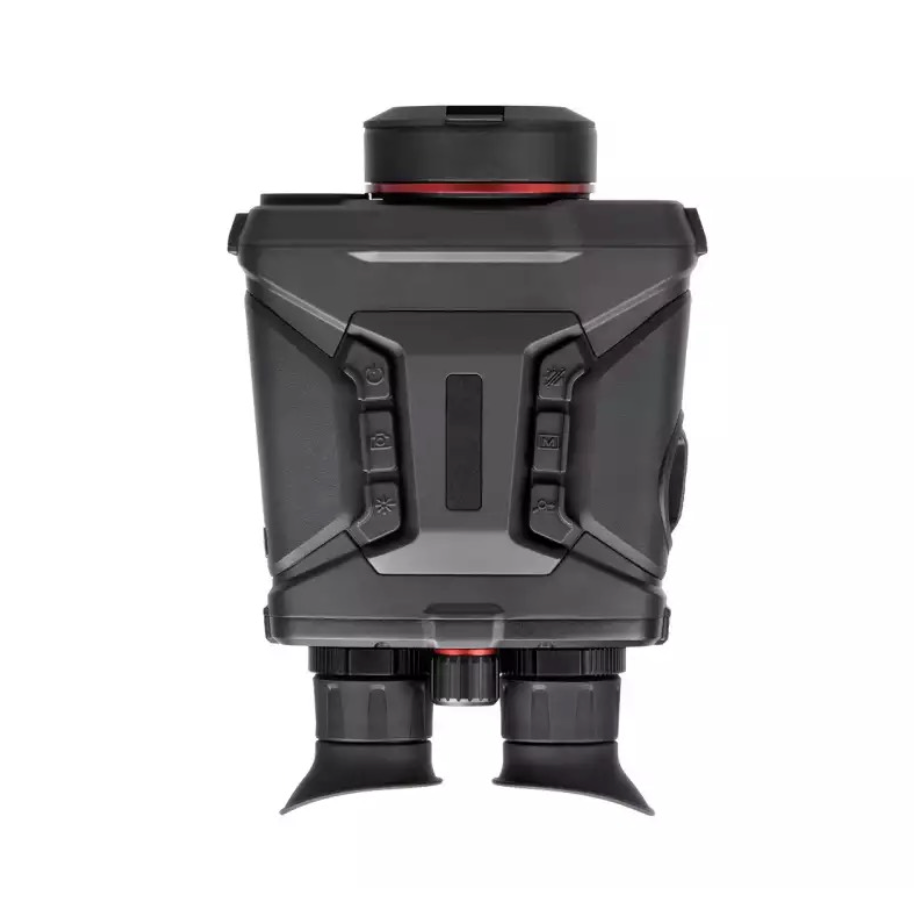

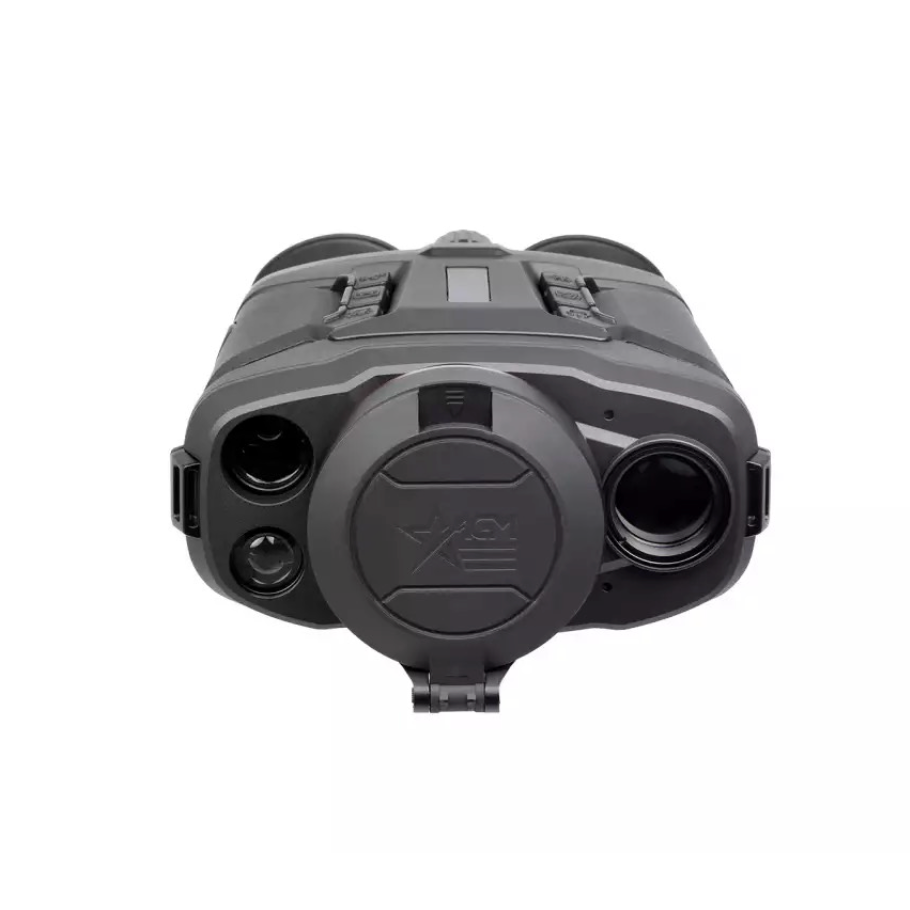

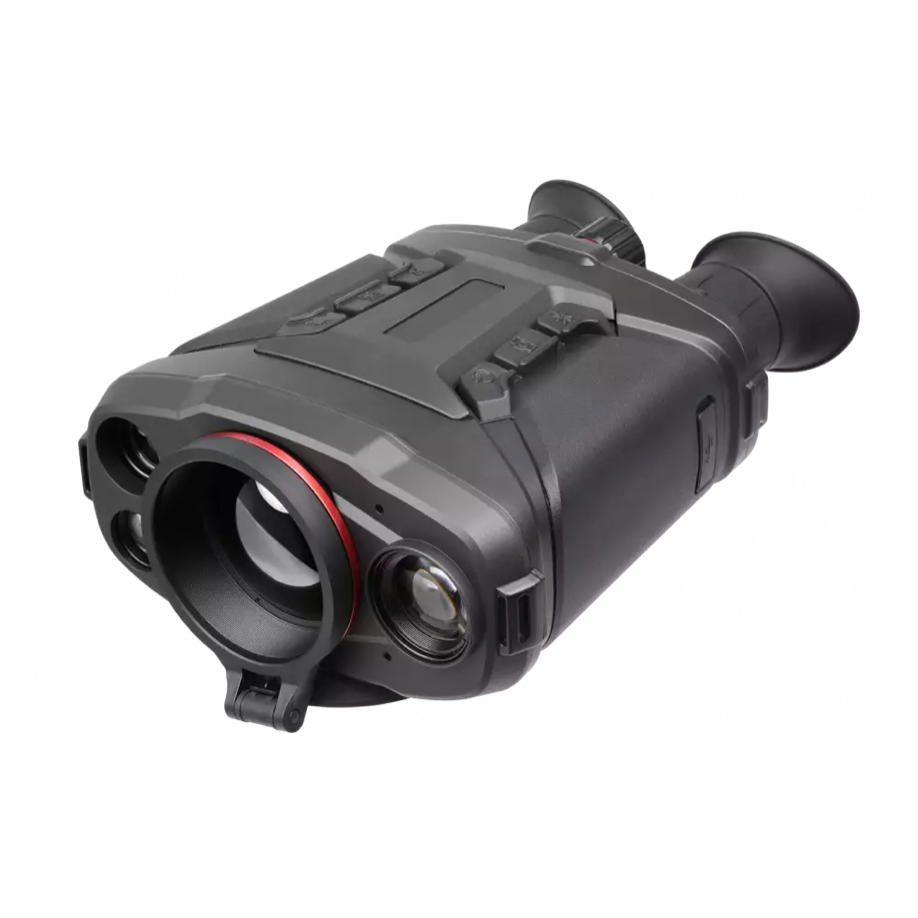

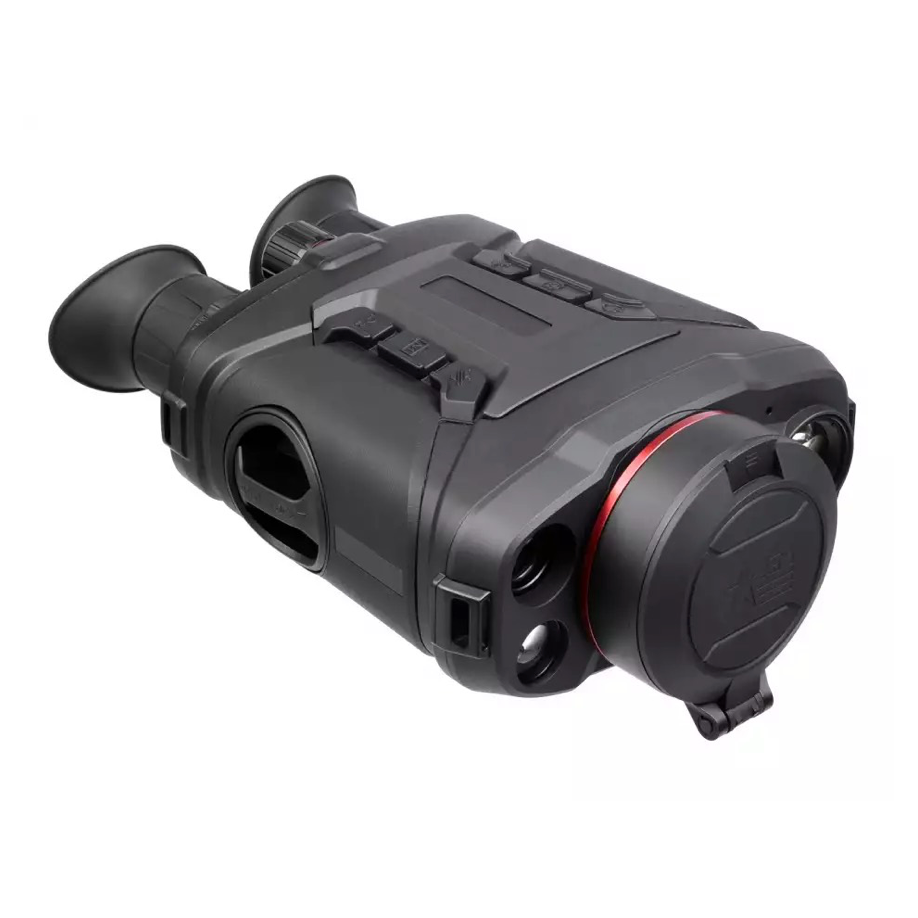

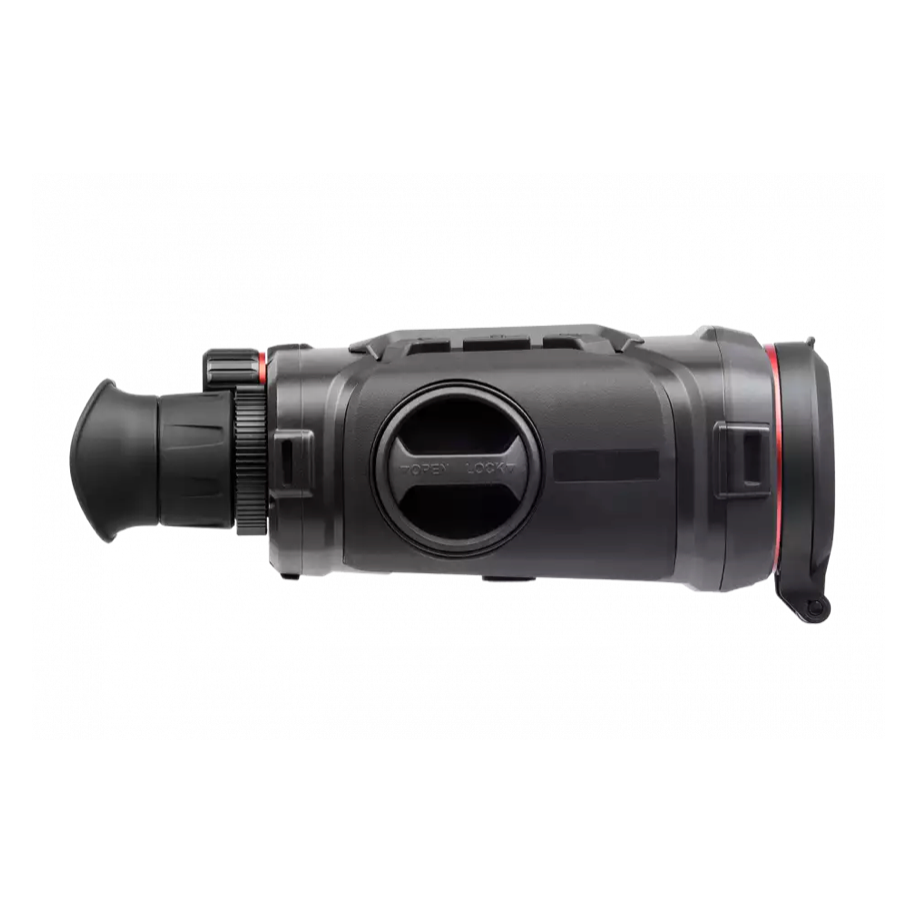

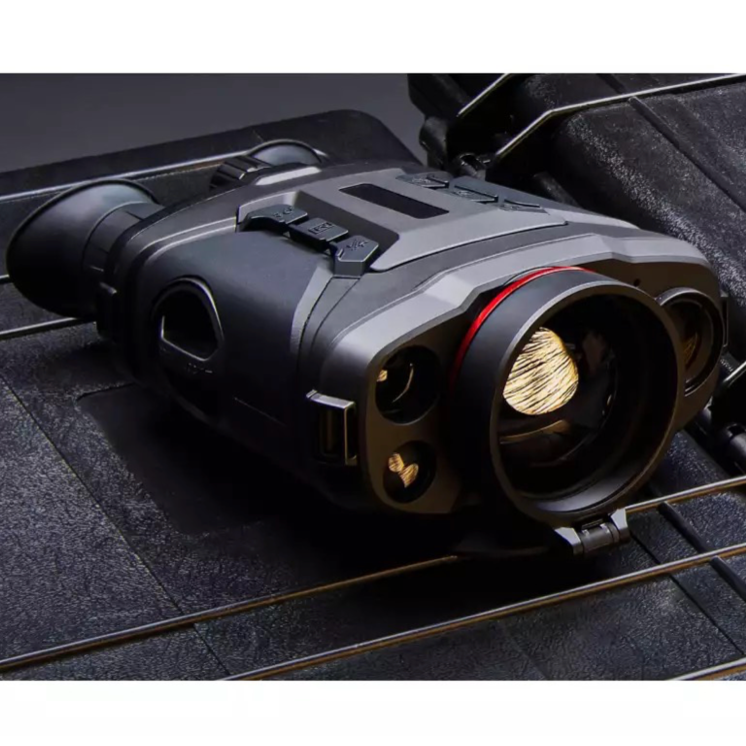

The Voyage series of fusion thermal & optical dual- spectrum binoculars are equipped with a 12μm high- sensitivity infrared thermal sensor (NETD < 20 mK), 2560×1440 ultra-low light optical detector, 1024×768 OLED display and eyepiece with large field of view.
This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.
TB50-384:
The AGM Voyage TB50-384 Fusion Thermal & Digital Day/Night Vision binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this binocular lies within the main thermal viewing channel, with its incredible new 12 micron 384x288 thermal detector. This new AGM thermal sensor possesses an industry leading sensitivity rating of sub-20mK (millikelvin). This sensor from AGM will ensure that not only are human-sized heat signatures detectable at up to 1.6 miles (2600m), but also that foliage and other background imagery will be crisp and detailed in closer distances/ranges. Unlike other thermal binoculars on the market, the Voyage also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets after the thermal channel has detected a potential target. The built-in 1000m Laser Rangefinder simply takes the Voyage to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility.
TB50-640:
The AGM Voyage TB50-640 Fusion Thermal & Digital Day/Night Vision binocular boasts cutting-edge technology and numerous features. At its core, the binocular utilizes a main thermal viewing channel with a revolutionary 12 micron 640x512 thermal detector that sets it apart from others in the industry. With an impressive sub-20mK sensitivity rating, the AGM thermal sensor can detect human-sized heat signatures up to 1.6 miles (2600m) away. Additionally, the binocular has a built-in digital night vision channel for enhanced target recognition and a 1000m Laser Rangefinder for added precision. And that's not all - the Voyage also includes 64GB of internal memory and is Wi-Fi compatible, making it a truly top-of-the-line option for any outdoor or tactical expedition.
TB75-640:
The AGM Voyage TB75-640 Fusion Thermal & Digital Day/Night Vision binocular is packed with advanced technology and features, making it a top choice for optics in the industry. Its main thermal viewing channel is powered by a 12 micron 640x512 thermal detector with a remarkable sensitivity rating of sub-20mK (millikelvin). This sensor from AGM can detect human-sized heat signatures up to 2.2 miles (3600m) away, while providing clear and detailed imagery of foliage and other background elements at closer distances. Unlike other thermal binoculars, the Voyage also features a digital night vision channel that can help identify targets after the thermal channel has detected them. And with a built-in 1000m Laser Rangefinder, this binocular takes functionality to the next level. Not to mention its impressive 64GB of internal memory and Wi-Fi compatibility.
TECHNICAL SPECIFICATIONS:
TB50-384:
- Magnification: 5.5× - 88×
- Interpupillary Distance: 60 mm to 70 mm
- Digital Zoom: 1×, 2×, 4×, 8×, 16×
- Detection Range: 2,600 m/yd (6’ object)*
- Flat Field Correction (FFC): 905 nm (Class 1)
- Palettes: Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion
- Diopter Adjustment: -5 to +3 dpt
- Battery Type: Three 18650 batteries
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Array
- Resolution: 384×288
- Pixel Pitch: 12 μm
- Response waveband: 8 μm to 14 μm
- NETD: Less than 20 mK (25°C, F#=1.0)
- Field of View: 5.3° × 4.0°
- Aperture: F0.9
- Lens (Focal Length): Less than 20 mK (25°C, F#=1.0)
- Monitor: 0.39-inch, OLED, 1024×768
- Storage: Built-in memory module (64 GB)
- Snapshot: JPEG, 1600x1200
- Battery Operating Time: Up to 8 hours
- Battery Capacity Display: Yes
- Protection level: IP67
- Mounting: 1/4”-20 UNC
- Cable Output: USB Type-C port
- Accessories (Supplied): Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Six 18650 Batteries, Power Adapter, User Manual, Carrying Case
- Dimension (LxWxH): 217 × 155 × 87 mm (8.5 × 6.1 × 3.5 in)
- Weight: 1.12 kg ( 2.5 lb)
- Storage temperature range: -40°C to 70°C (-40°F to 158°F)
- Picture In Picture Mode (PIP): Yes
- Video Recording: MP4, 1600x1200
- Measuring Distance of Laser Rangefinder: Max. 1,000 m
- Laser Wavelength: 905 nm (Class 1)
- Eye relief: 15 mm
-
External power supply: DC 5V/2A, Max.10W, Type-C port
TB50-640:
- Magnification: 3.5× - 56×
- Interpupillary Distance: 60 mm to 70 mm
- Digital Zoom: 1×, 2×, 4×, 8×, 16×
- Detection Range: 2,600 m/yd (6’ object)*
- Flat Field Correction (FFC): 905 nm (Class 1)
- Palettes: Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion
- Diopter Adjustment: 0.39-inch, OLED, 1024×768
- Battery Type: Three 18650 batteries
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Array
- Resolution: 640×512
- Pixel Pitch: 12 μm
- Response waveband: 8 μm to 14 μm
- NETD: Less than 20 mK (25°C, F#=1.0)
- Field of View: 8.7° × 7.0°
- Aperture: F0.9
- Lens (Focal Length): Less than 20 mK (25°C, F#=1.0)
- Monitor: 0.39-inch, OLED, 1024×768
- Storage: Built-in memory module (64 GB)
- Snapshot: JPEG, 1600x1200
- Battery Operating Time: Up to 8 hours
- Battery Capacity Display: Yes
- Protection level: IP67
- Mounting: 1/4”-20 UNC
- Cable Output: USB Type-C port
- Accessories (Supplied): Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Six 18650 Batteries, Power Adapter, User Manual, Carrying Case
- Dimension (LxWxH): 217 × 155 × 88 mm (8.5 × 6.1 × 3.5 in)
- Weight: 1.12 kg ( 2.5 lb)
- Storage temperature range: -40°C to 70°C (-40°F to 158°F)
- Picture In Picture Mode (PIP): Yes
- Video Recording: MP4, 1600x1200
- Measuring Distance of Laser Rangefinder: Max. 1,000 m
- Laser Wavelength: 905 nm (Class 1)
- Eye relief: 15 mm
-
External power supply: DC 5V/2A, Max.10W, Type-C port
TB75-640:
- Magnification: 5× - 80×
- Interpupillary Distance: 60 mm to 70 mm
- Digital Zoom: 1×, 2×, 4×, 8×, 16×
- Detection Range: 3,600 m/yd (6’ object)
- Flat Field Correction (FFC): 905 nm (Class 1)
- Palettes: Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion
- Diopter Adjustment: 0.39-inch, OLED, 1024×768
- Battery Type: Three 18650 batteries
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Array
- Resolution: 640×512
- Pixel Pitch: 12 μm
- Response waveband: 8 μm to 14 μm
- NETD: Less than 20 mK (25°C, F#=1.0)
- Field of View: 5.9° × 4.7°
- Aperture: F1.2
- Lens (Focal Length): 75 mm, Manual focus
- Monitor: 0.39-inch, OLED, 1024×768
- Storage: Built-in memory module (64 GB)
- Snapshot: JPEG, 1600x1200
- Battery Operating Time: Up to 8 hours
- Battery Capacity Display: Yes
- Protection level: IP67
- Mounting: 1/4”-20 UNC
- Cable Output: USB Type-C port
- Accessories (Supplied): Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Six 18650 Batteries, Power Adapter, User Manual, Carrying Case
- Dimension (LxWxH): 217 × 155 × 88 mm (8.5 × 6.1 × 3.5 in)
- Weight: 1.12 kg ( 2.5 lb)
- Storage temperature range: -40°C to 70°C (-40°F to 158°F)
- Picture In Picture Mode (PIP): Yes
- Video Recording: MP4, 1600x1200
- Measuring Distance of Laser Rangefinder: Max. 1,000 m
- Laser Wavelength: 905 nm (Class 1)
- Eye relief: 15 mm
- External power supply: DC 5V/2A, Max.10W, Type-C port
