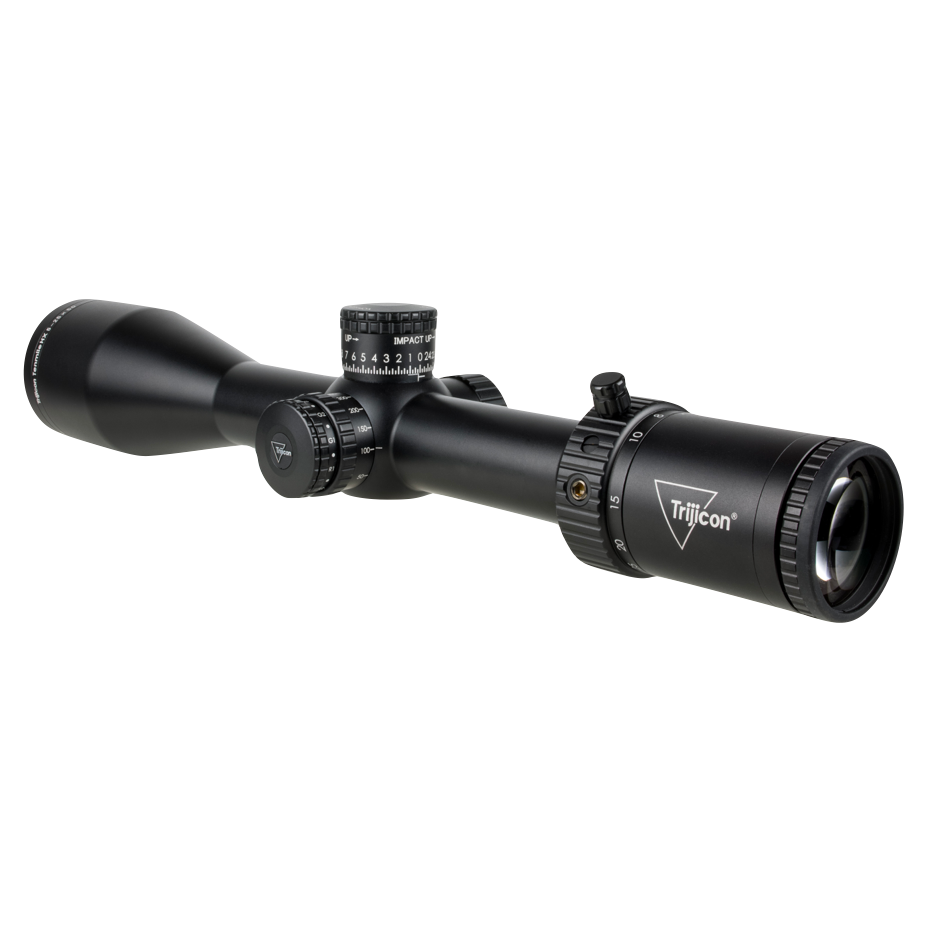

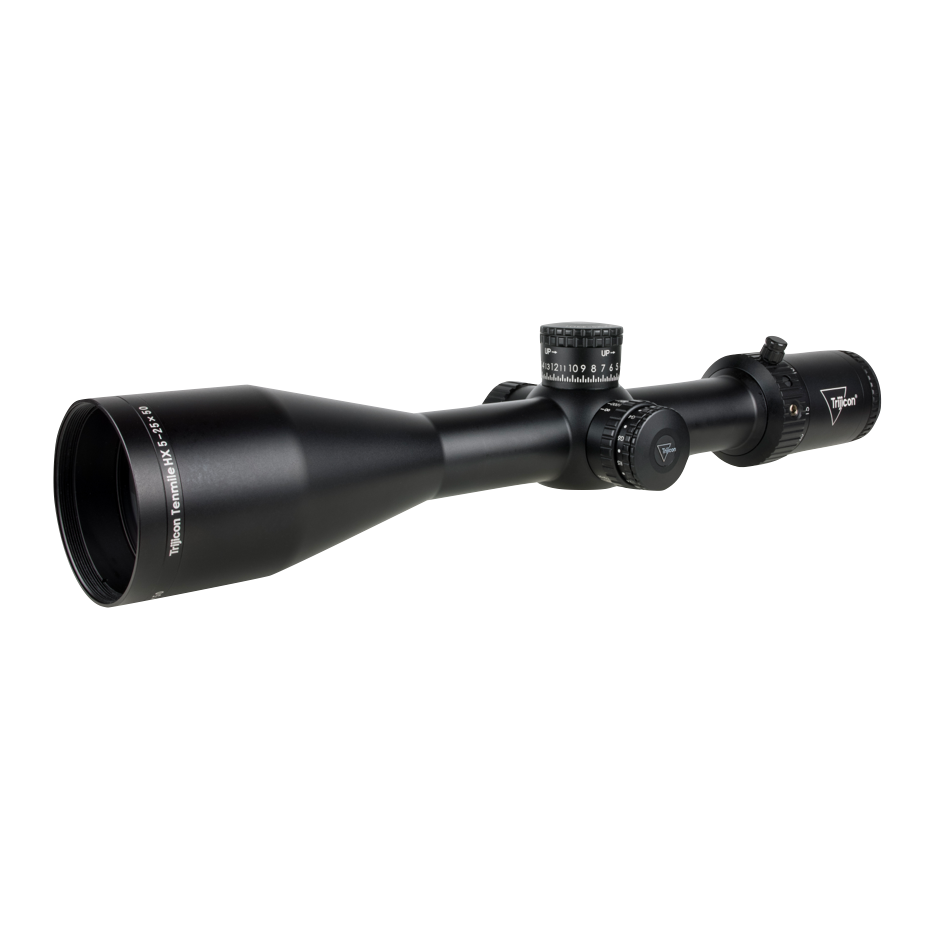

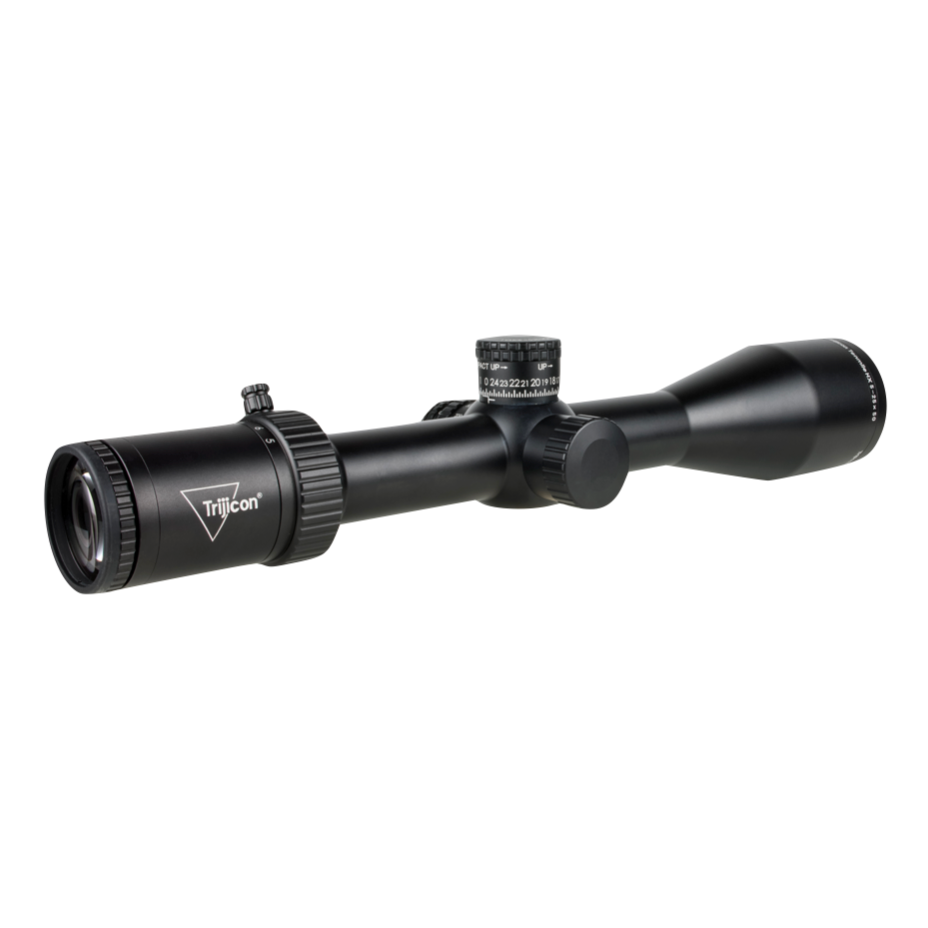

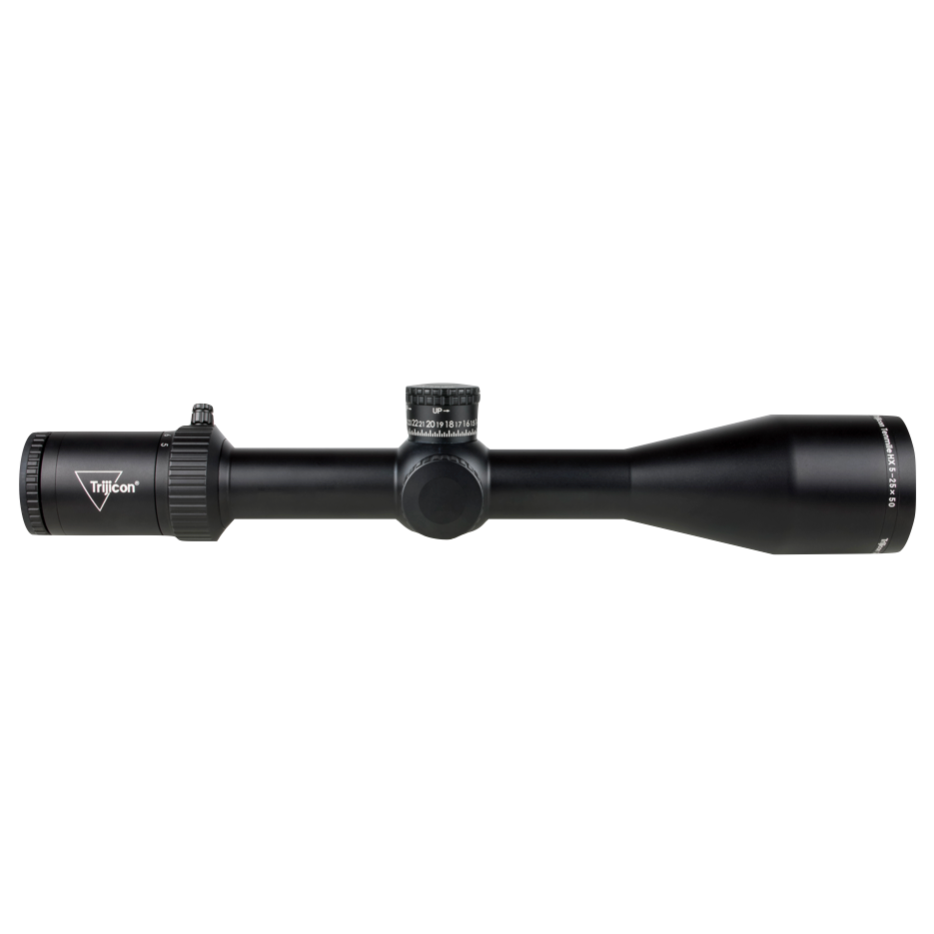

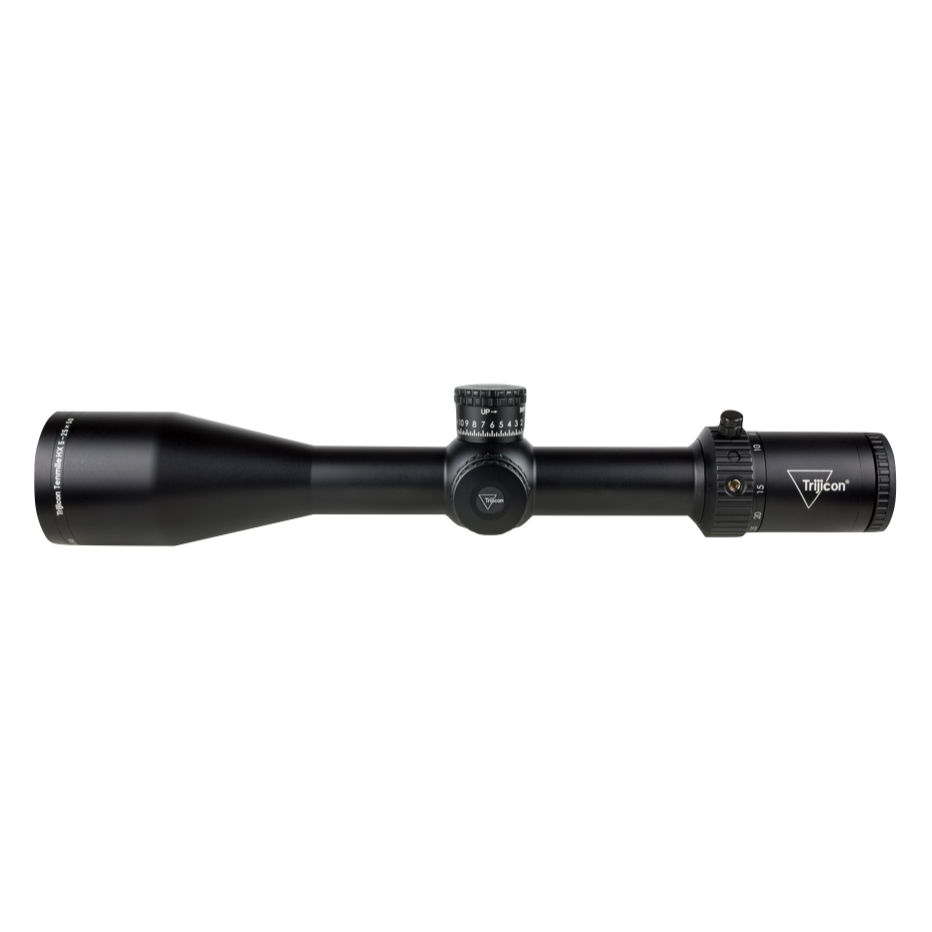

Any environment. Any lighting condition. This is the confidence you get with the highly versatile Trijicon Tenmile® HX 5-25x50 by your side. Expect pinpoint precision and long-range, all-weather performance you can trust in the middle of nowhere, as well as extremely precise, repeatable adjusters.
This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.

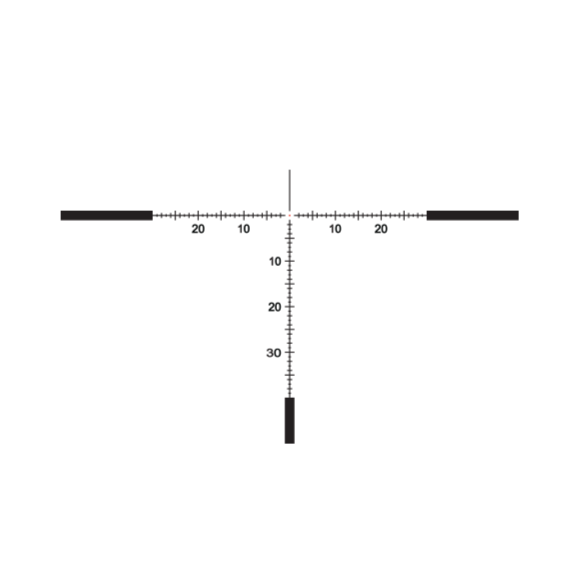

The first focal plane MOA Ranging reticle allows you to quickly hold for range regardless of magnification. The exposed elevation zero stop allows you to dial for distance and quickly return to zero.
Customize this scope with turrets tailored to your unique ballistics and environmental factors. Custom-built turrets eliminate the need to convert clicks to distance, allowing you to range the target, dial to the correct yardage, and take the shot with confidence. Build your custom turret at the link below.
SPECIFICATIONS:
- Length x Width x Height: 14.25 in x 3.2 in x 2.4 in (361.95mm x 81.28mm x 60.96mm)
- Weight: 28.9 oz. (819.3g)
- Magnification: 5-25x
- Objective Size: 50mm
- Tube Size: 30mm
- Reticle Pattern: MOA Ranging Crosshair
- Day Reticle Color: Red / Green
- Night Reticle Color: Red / Green
- Focal Plane: First
- Illumination Source: LED
- Illumination Settings: 5 Red / 5 Green
- Power Source: 1 CR2032 Battery
-
Battery Life:
- Red: 39 hours
- Green: 94 hours
- Adjustment: 1/4 MOA per click
-
Adjustment Range:
- 50 MOA Elevation
- 40 MOA Windage
- Eye Relief: 3.03 in. - 3.62 in. (76.96mm - 91.95mm)
- Exit Pupil: .26 in. - .08 in. (6.6mm - 2.03mm)
- Field of View (degrees): 4.46° - 0.89°
- Field of View (feet): 23.3 ft. - 4.7 ft. @ 100 yds. (7.77 - 1.57m @ 100m)
- Housing Material: 6061 Aircraft Grade Aluminum
-
Finish: Satin Black
FEATURES:
- Pinpoint Aiming in Any Condition: Options for precise milling or holdover reticles in first or second focal plane ensure accuracy.
- Edge-to-Edge Clarity: Fully multi-coated, broadband, anti-reflective glass for excellent light transmission, true detail, and zero distortion.
- Increased Adjuster Range: 30mm tube provides increased adjuster range and enhanced durability.
- Ultra Durable for Ensured Reliability: Built with aircraft-grade aluminum and a ruggedized design tested to military standards and protocols.
- Quick & Easy Adjustments: Crisp windage/elevation adjusters require no tools; capped or zero stop adjusters prevent accidental shifts.
- Confident Aiming in Any Light: User-selectable LED brightness settings with an “off” between each setting for adaptability to any environment.
- Optimal Flexibility: Generous windage and elevation adjustment allows for maximum total travel.
-
Repositionable Magnification Lever: Designed for compatibility with various shooting positions and rifle configurations.

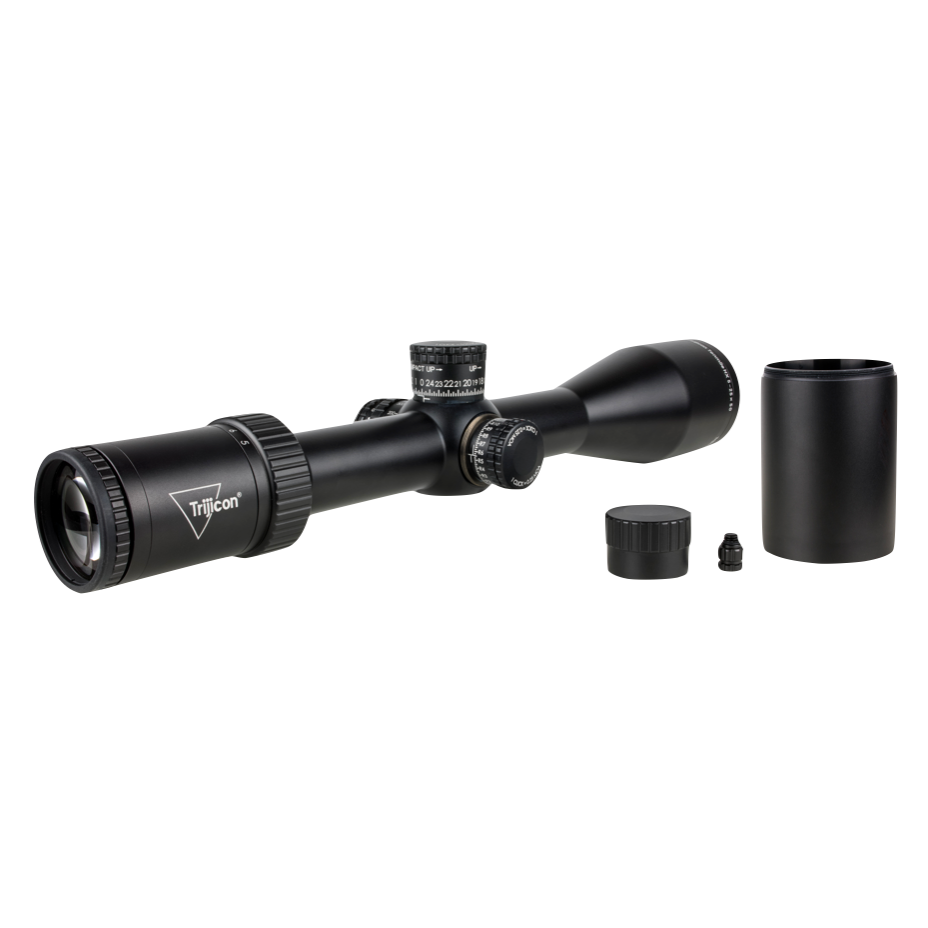

INCLUDED:

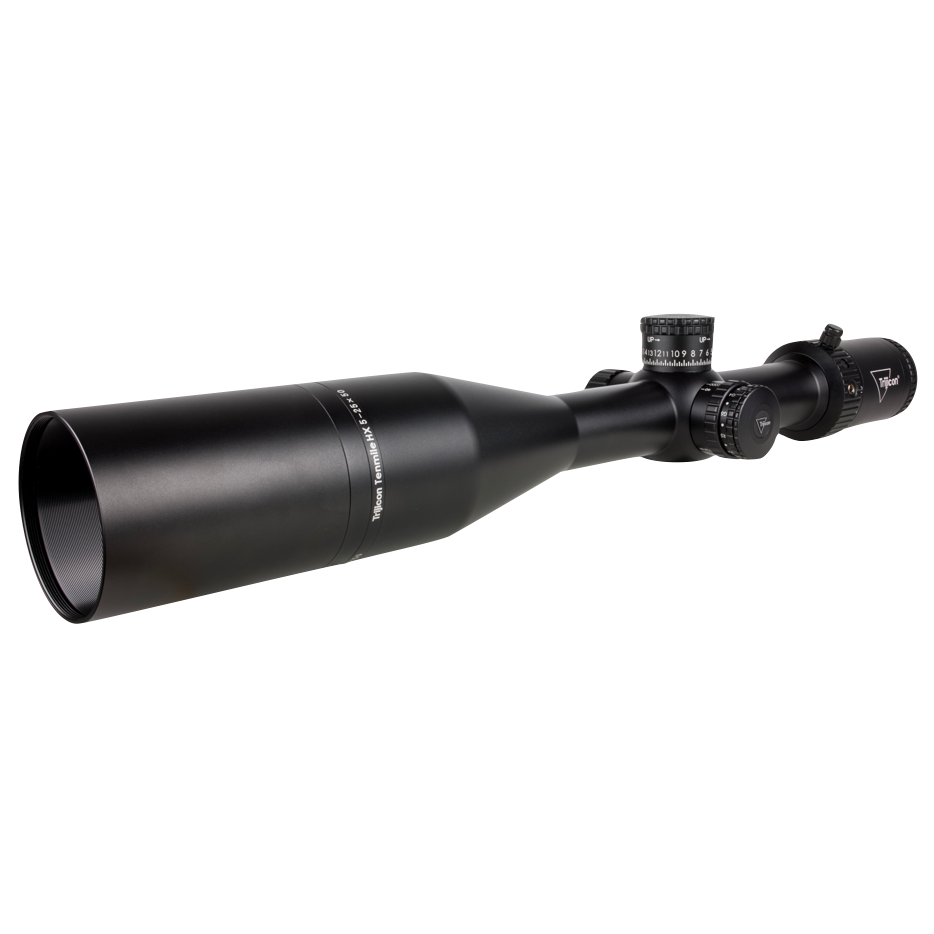

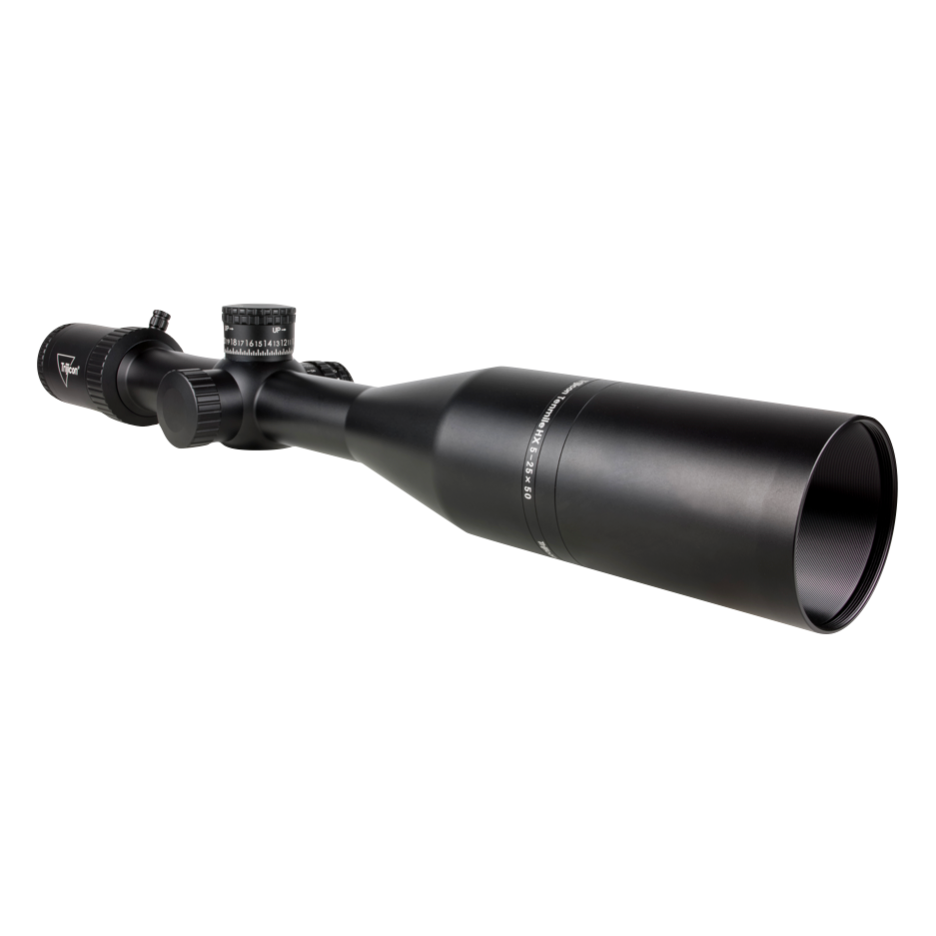

- Sunshade
- Tenebraex Flip Caps
- Scopecoat™
- 3mm Hex Key
- 1.5mm Hex Key
- Repositionable Magnification Knob and Replacement Screw
- 1 CR2032 Battery
- Quick Reference Guide
- Warranty Card
- Vinyl Logo Sticker
