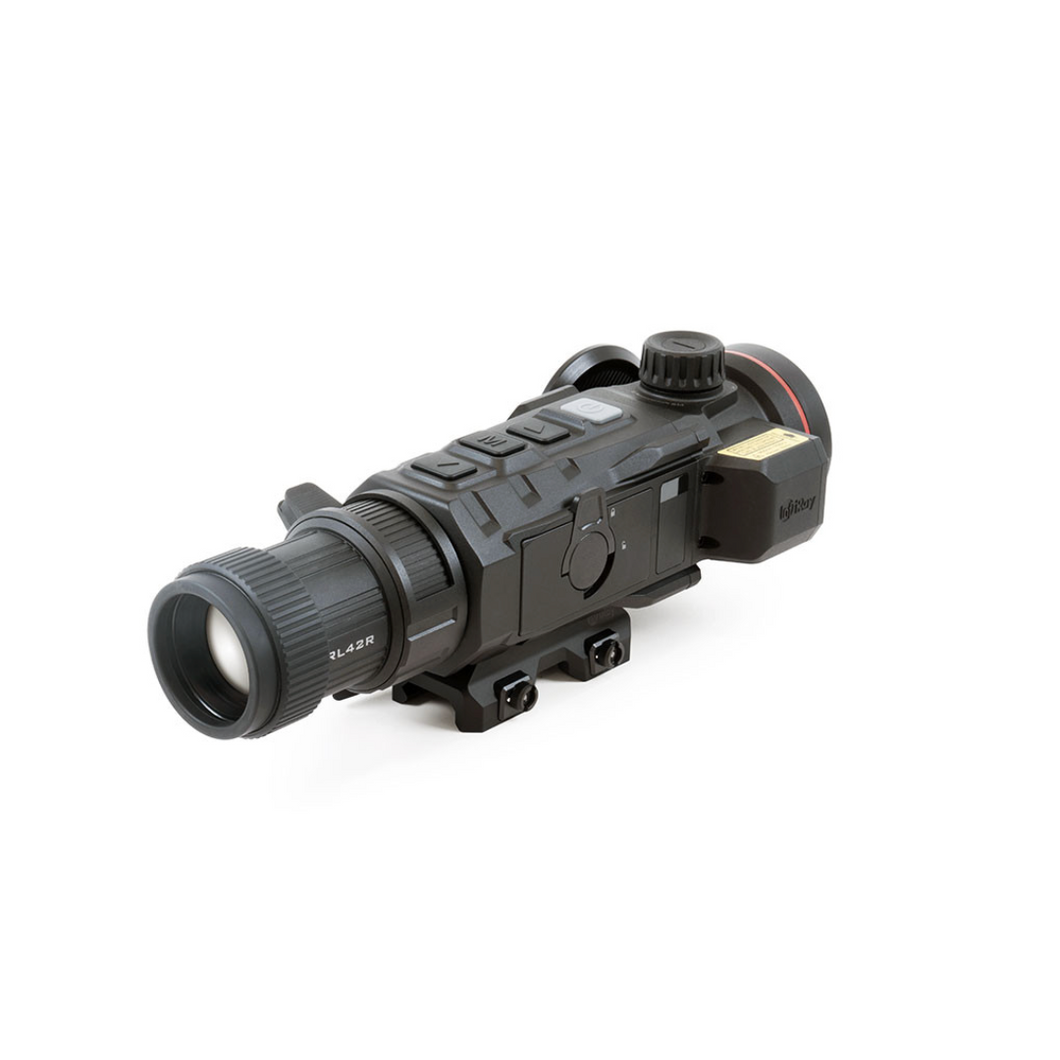

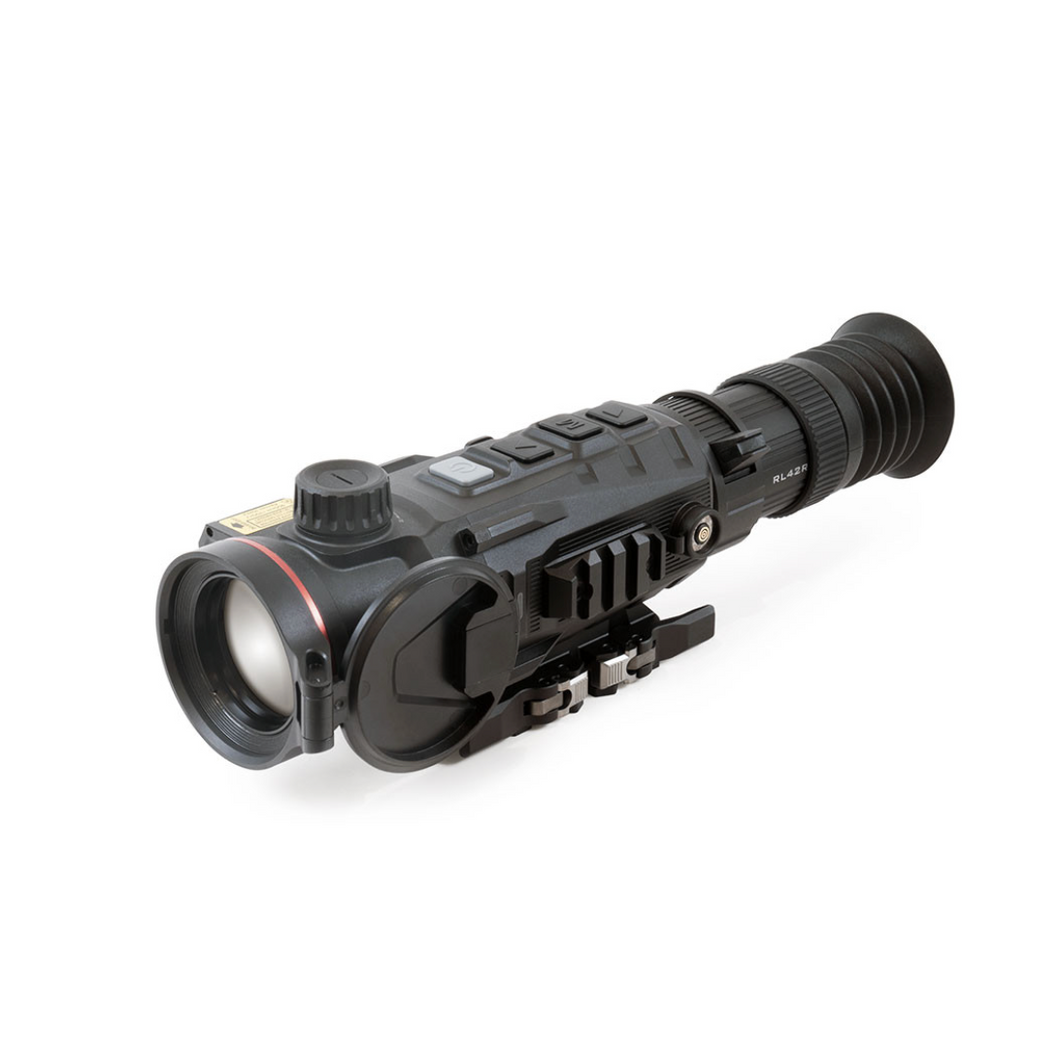

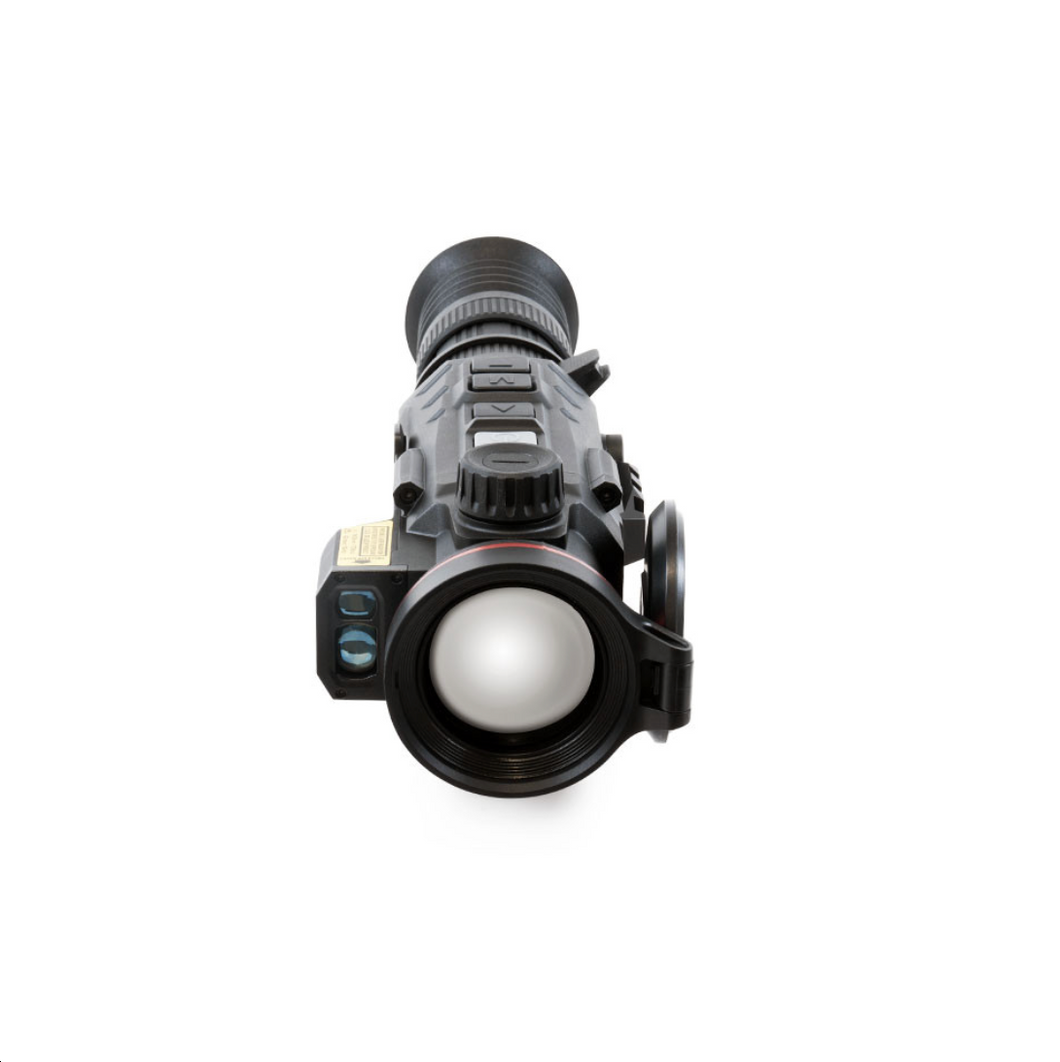

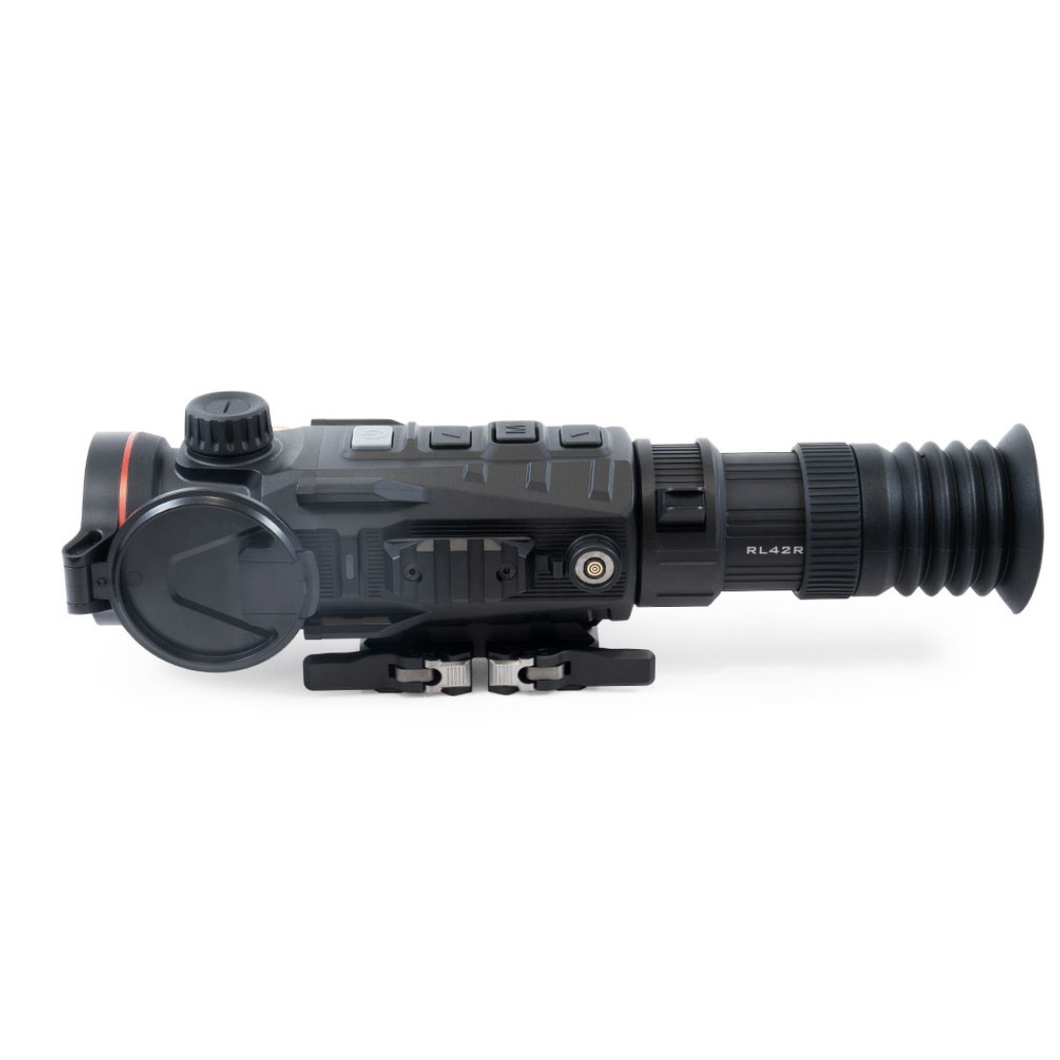

Built upon the original RICO Mk1 series, the RICO Mk2 LRF was designed with an integrated 1,200-yard capable rangefinder, a 60 Hz refresh rate, and increased 20 mK thermal sensitivity rating.
This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.
The RICO Mk2 features a high-performance 12 µm Micro II core and an ultra-high-contrast 2560×2560 AMOLED HD display for an unparalleled viewing experience. es such as a rotating zoom lever, magnetic charging port, and recoil activated video.
OPTICS:
- Exit Pupil: 1.0
- Eye Relief: 60mm
- Eyepiece Focal Length: 4.6
- Digital Magnification: 4X
- Vertical Angular Field of View: 4.6
- Objective Focusing Range: Germanium
- Focusing Mechanism: Manual Focus
- Objective F#: 1.0
- Objective Diameter: 42mm
- Objective Lens Material: Germanium
- Display Resolution: 2560×2560
- Detection Range: 2000 Yards
- Optical Magnification: 4X
- Eyepiece Diameter: Manual Focus
- Display Type: AMOLED
- Objective Focal Length: 42mm
- Diopter Range: -3 to +3
-
Horizontal Angular Field of View: 6.2
FEATURES & PERFORMANCE:
- Warranty: 5 Years
- Startup Time: <10 Seconds, Instant from Standby
- Color Palettes: White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet
- Picture-in-Picture: Yes
- Storage Capacity: 32GB
- Connector Output: Power/Data
- Mobile App: Yes
- Run Time: 5+
- Compatible With: 5+
- One-Shot Zero: 2560×2560
- Stand-by Mode: Yes
- Connector Type: USB-C
- External Power Source: USB-C External, IBP-5 Li-ion Battery Pack
- Reticle: 8 (7 Static, 1 DIY)
- Country of Manufacture: China
- Rangefinder: Integrated 1200 yd LRF
-
User-Updatable Firmware: Yes
ENVIRONMENTAL SPECIFICATIONS:
- Operating Temperature Range: -4°F~122°F
- Mean Time to Failure: China
- Ingress Protection: IP67
-
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
PHYSICAL:
- Mounting Interface: 9.50
- Housing Material: Magnesium Alloy
- Height: 3.75
- Length: 9.50
- Weight: 36.63 Oz.
-
Width: 3.00
SENSOR SPECIFICATIONS:
- Sensor Pixel Size: 12μm
- Thermal Sensitivity: <20mk
- Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
- Spectral Response: 384×288
- Sensor Frame Rate: 60hz
- Device Technology: Thermal Imaging
- Sensor Resolution: 384×288
-
Sensor Type: InfiRay MICRO II
