The Scope That Changed Everything. There's a reason the Trijicon ACOG® (Advanced Combat Optical Gunsight) is the official medium-distance engagement optic of the Marine Corps and U.S. Special Operations Forces.
This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.
The concept was simple; a durable scope with a reticle that illuminates in low-light and no-light situations—without requiring the use of batteries.

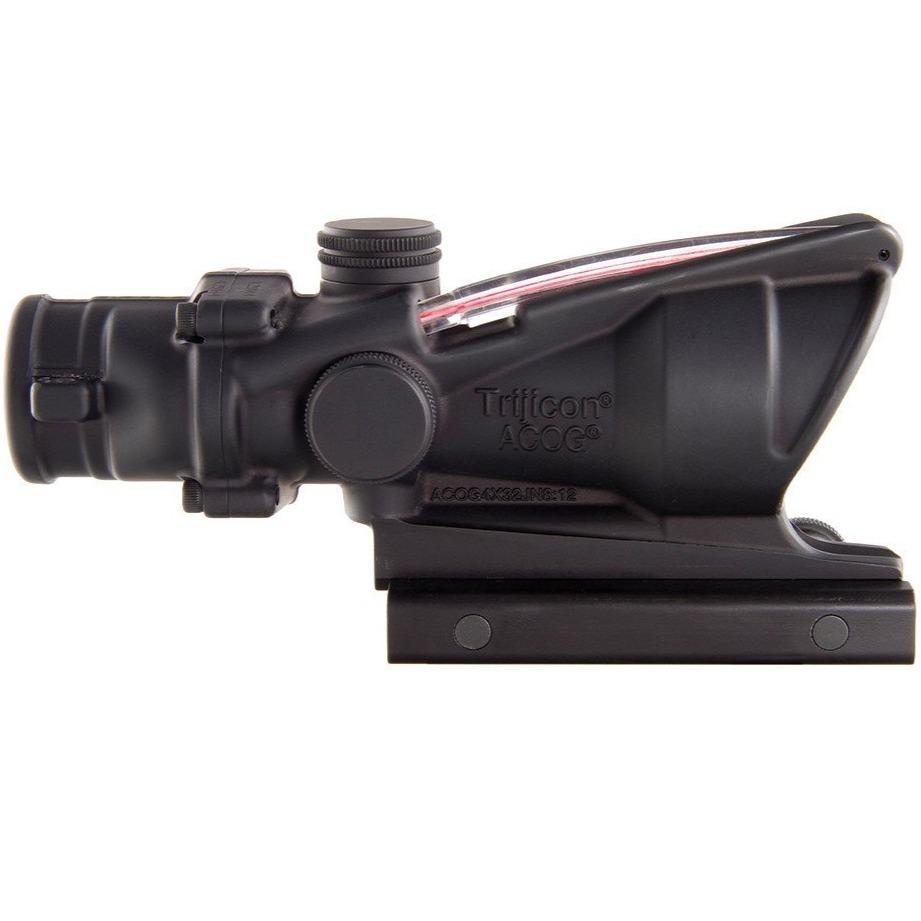

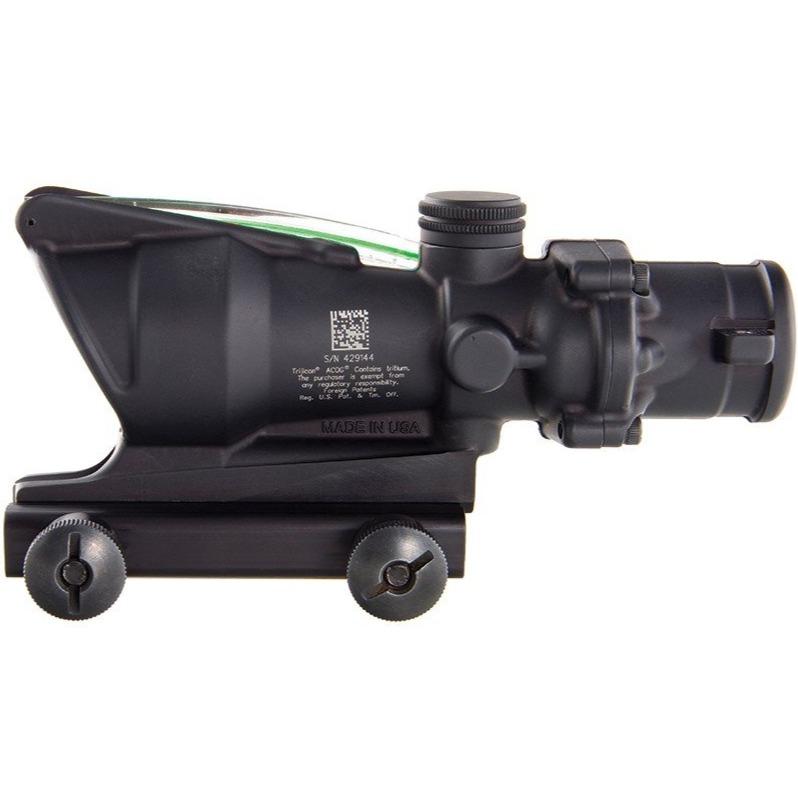

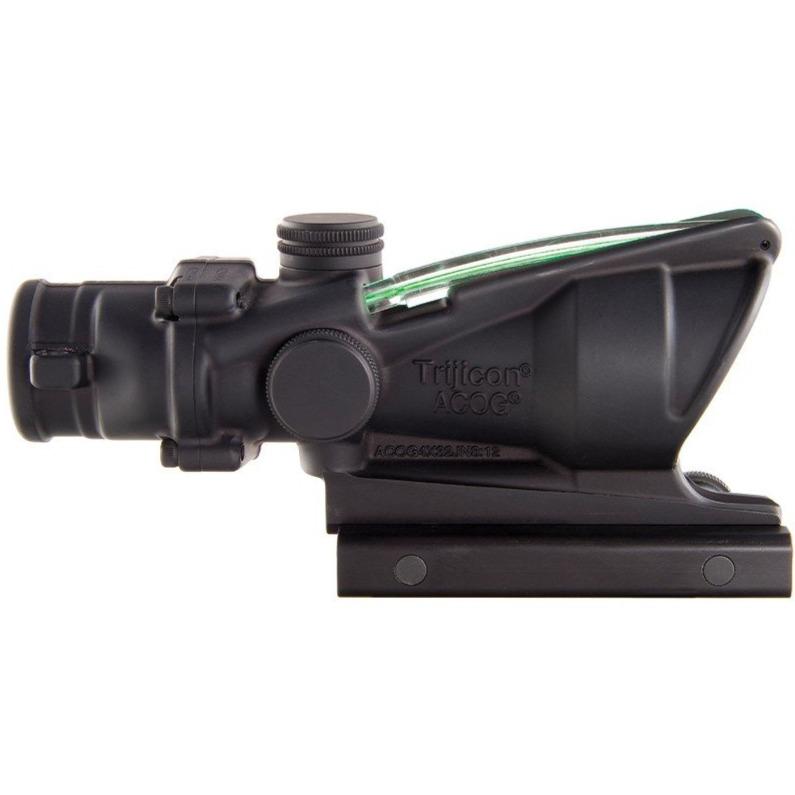

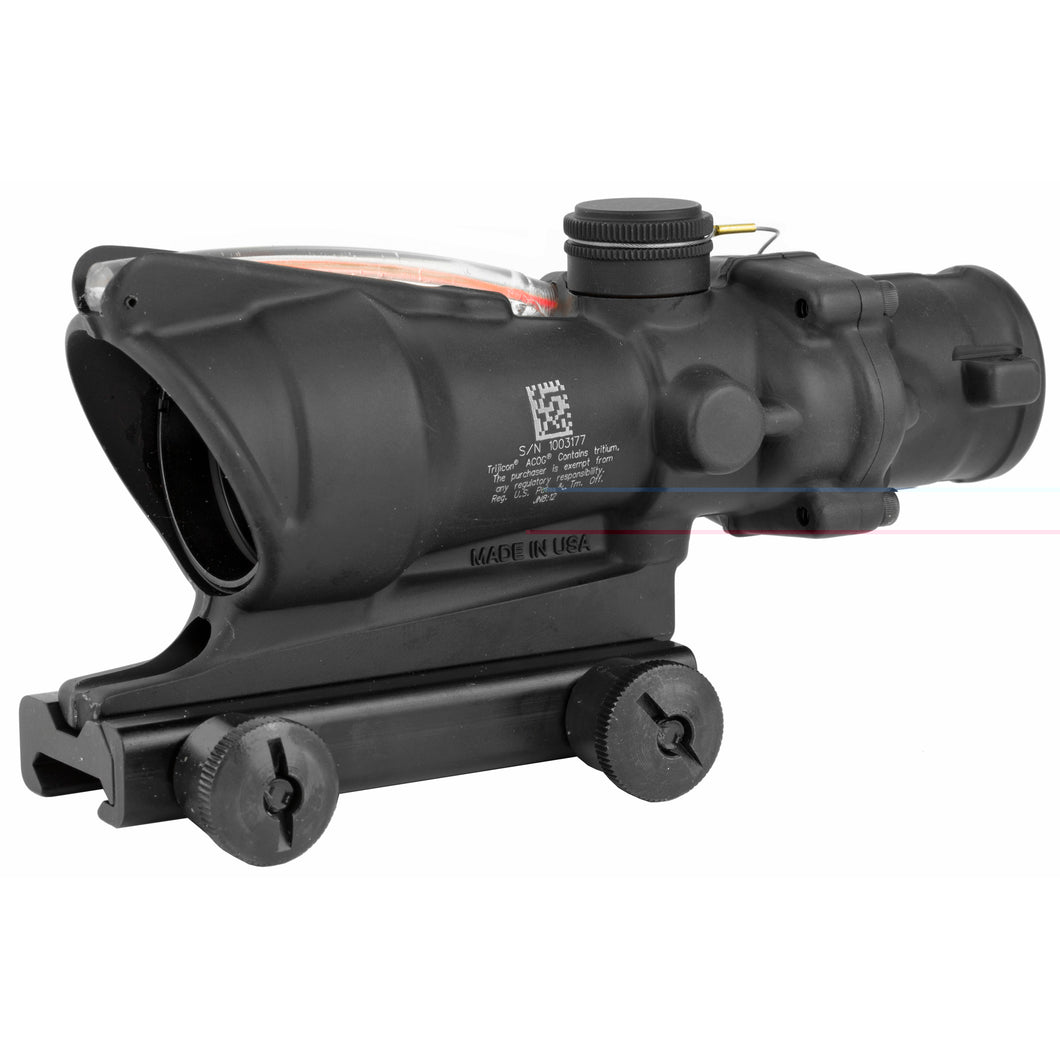

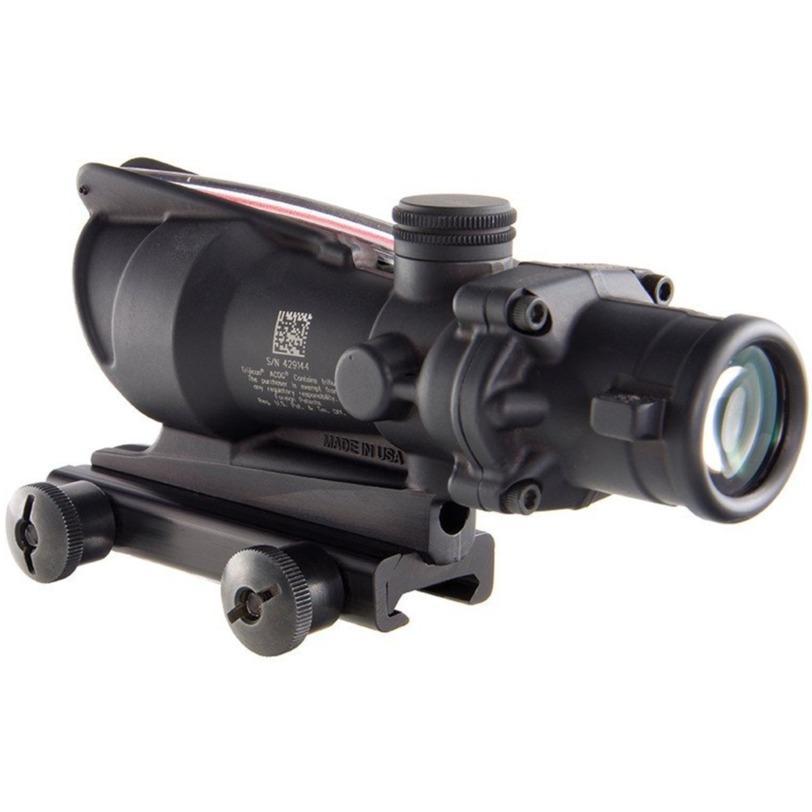

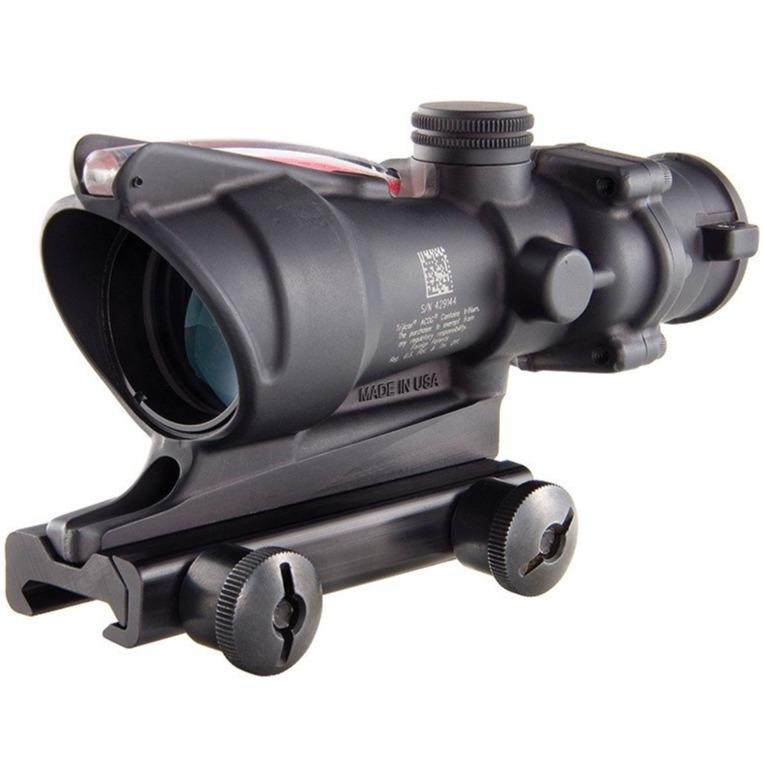

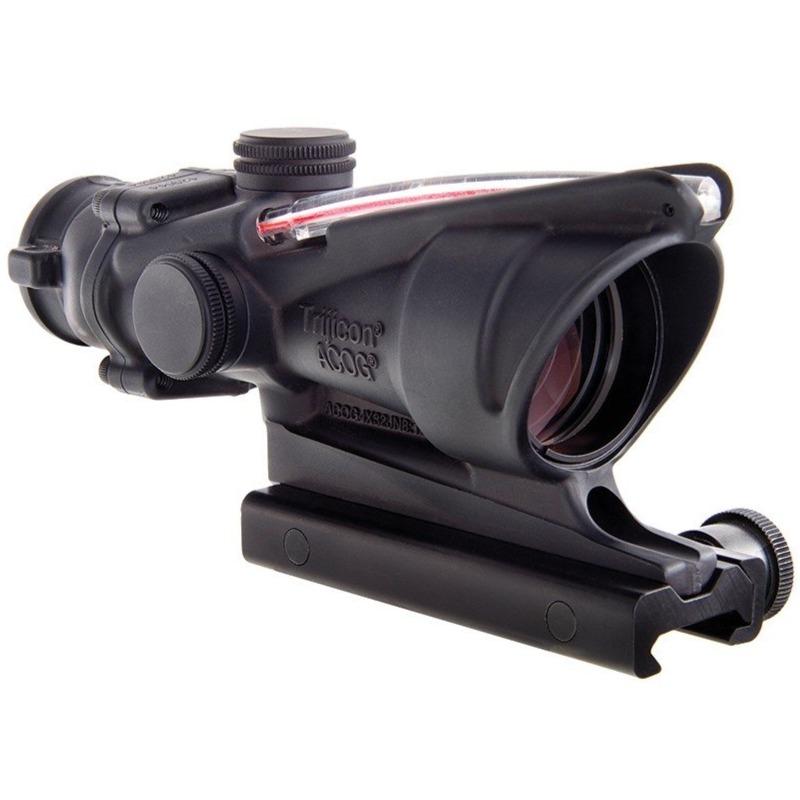

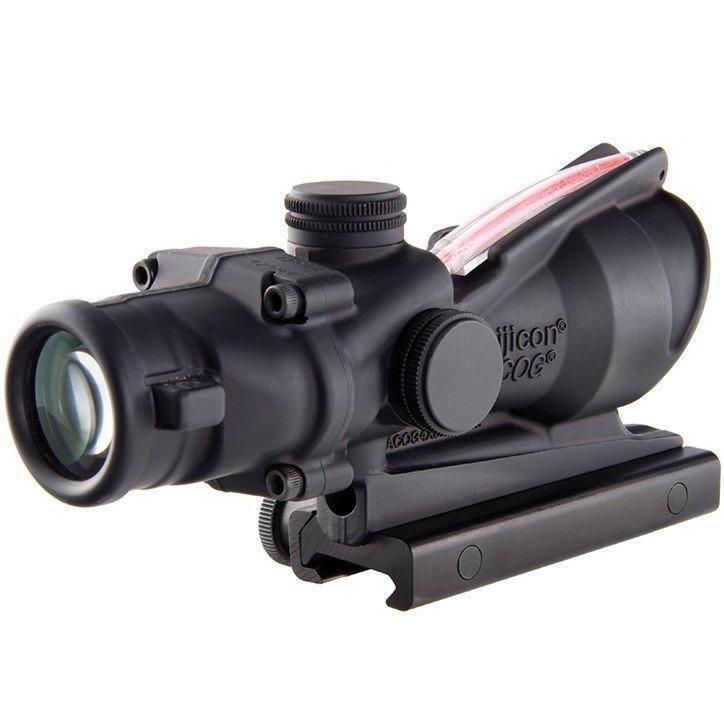

More than 30 years later, the original ACOG stands the test of time as one of our most popular items. Choose from many 4x32 options, including the Official Rifle Combat Optic (RCO) of the U.S. Marine Corps.

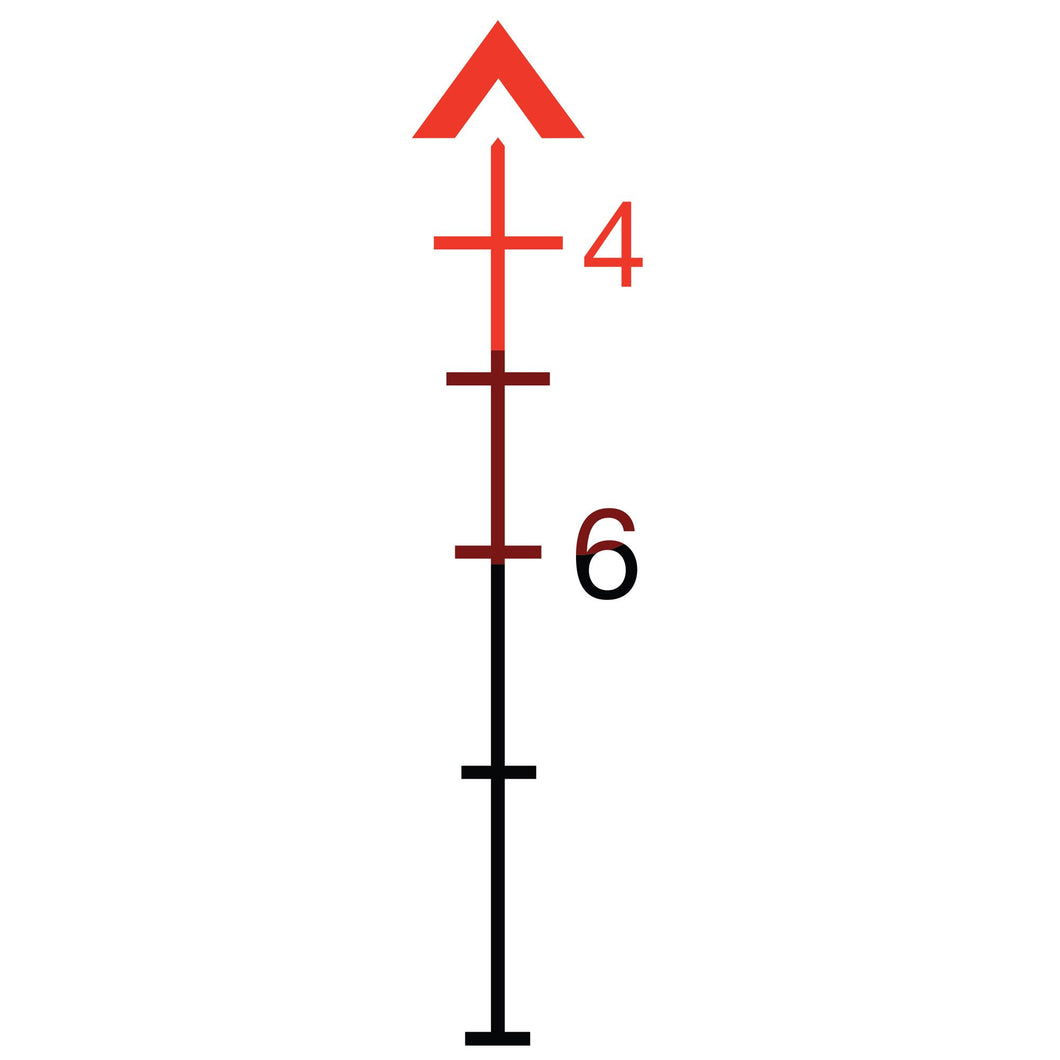

The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is 19 in. at 300 meters. This allows range estimation for silhouette targets. Features dual illumination (Fiber optics provides daylight illumination and tritium illuminates reticle at night). The ranging reticle is calibrated for 5.56(.223 cal) flattop rifles out to 800 meters.

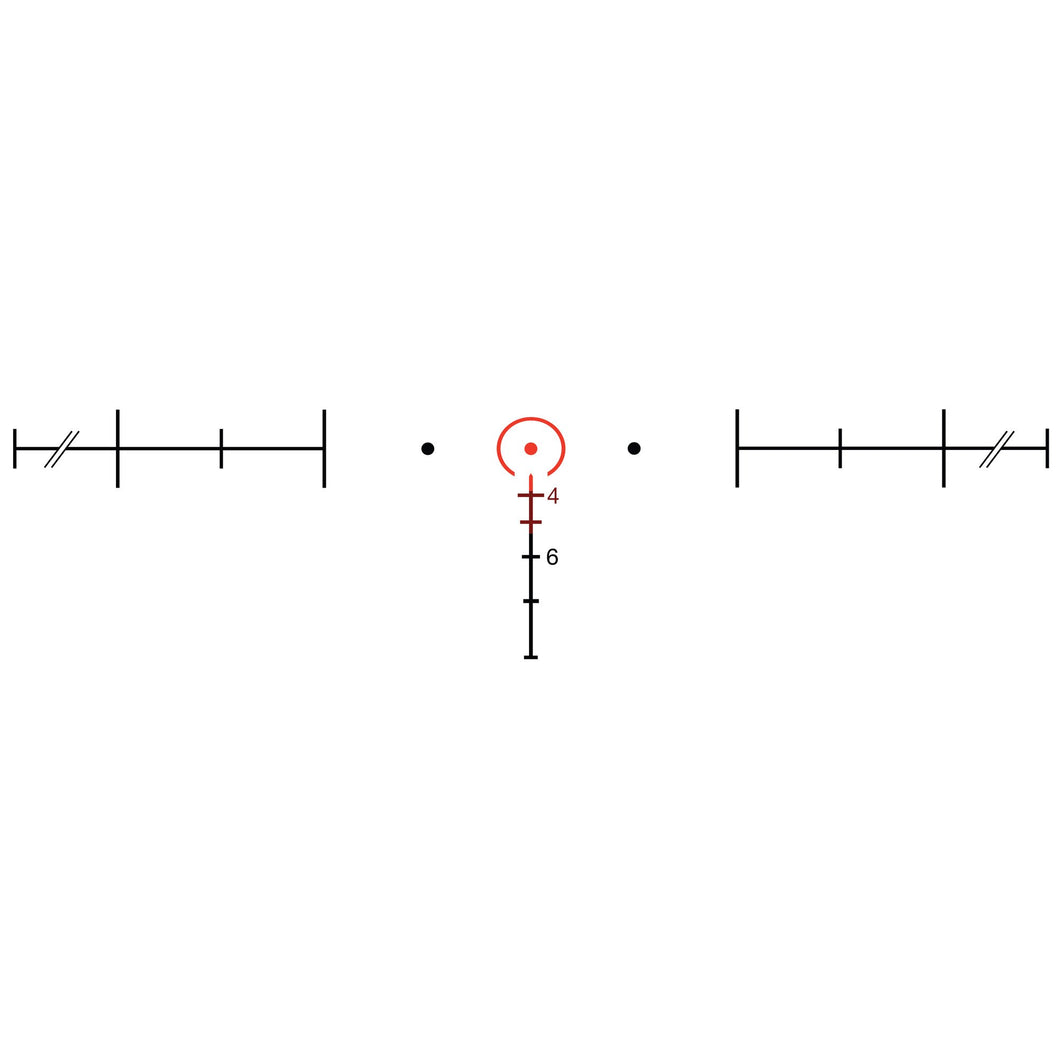

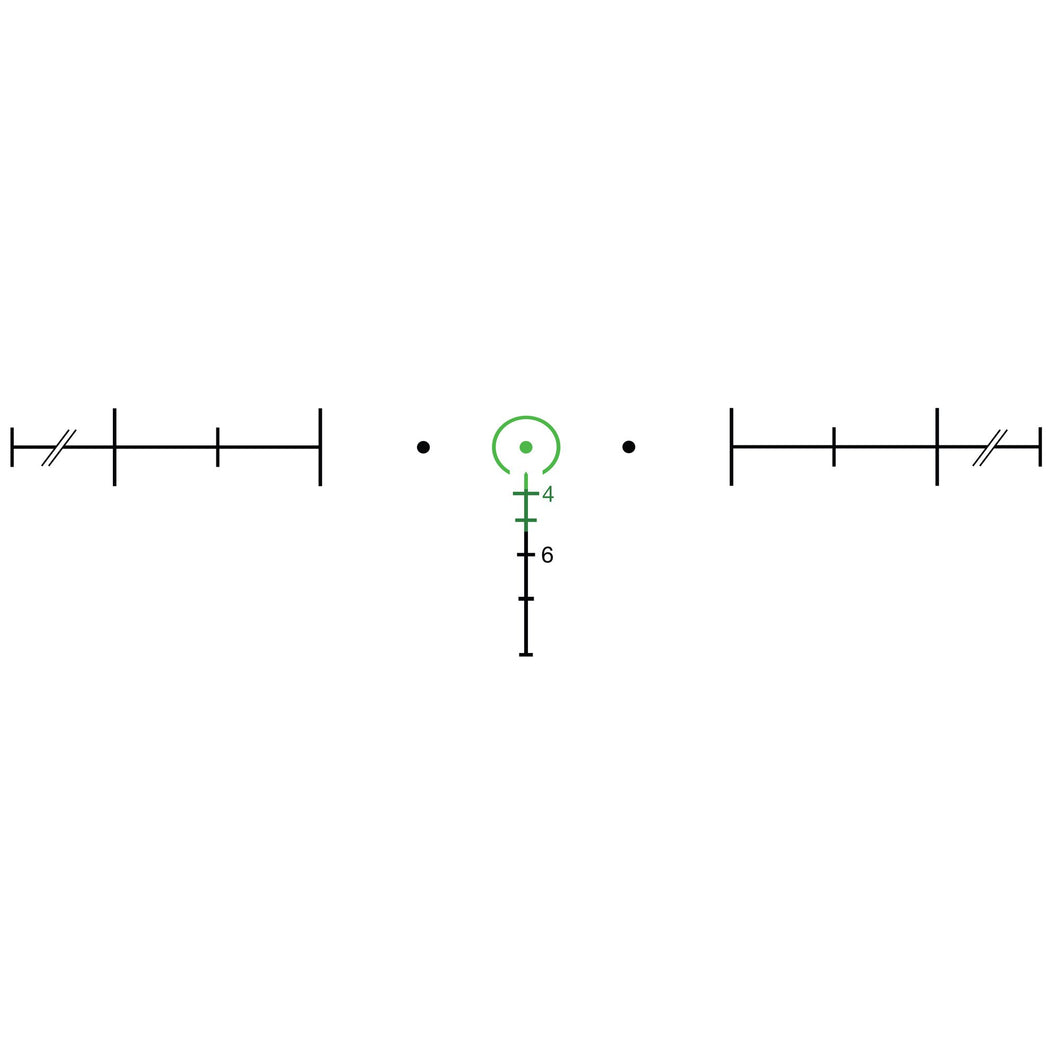

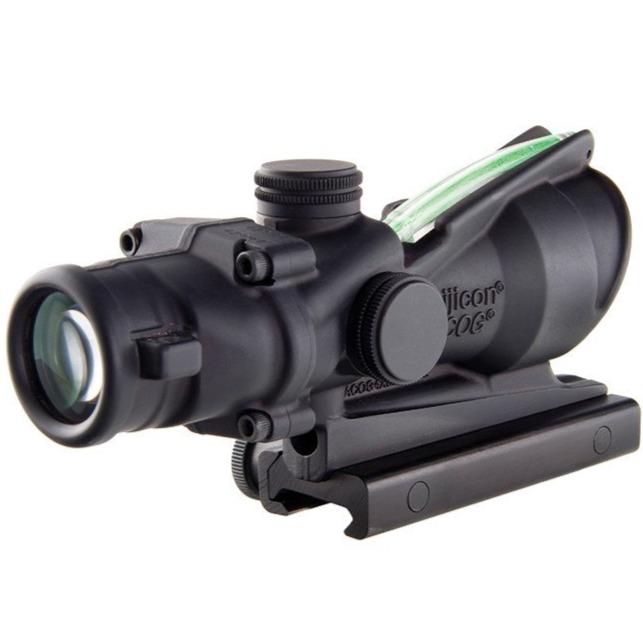

The Red or Green Horseshoe BAC Reticle features dual illumination (Fiber optics provides daylight illumination and tritium illuminates reticle at night). The ranging reticle is calibrated for 5.56(.223 cal) or 6.8 SPC flattop rifles out to 800 meters.

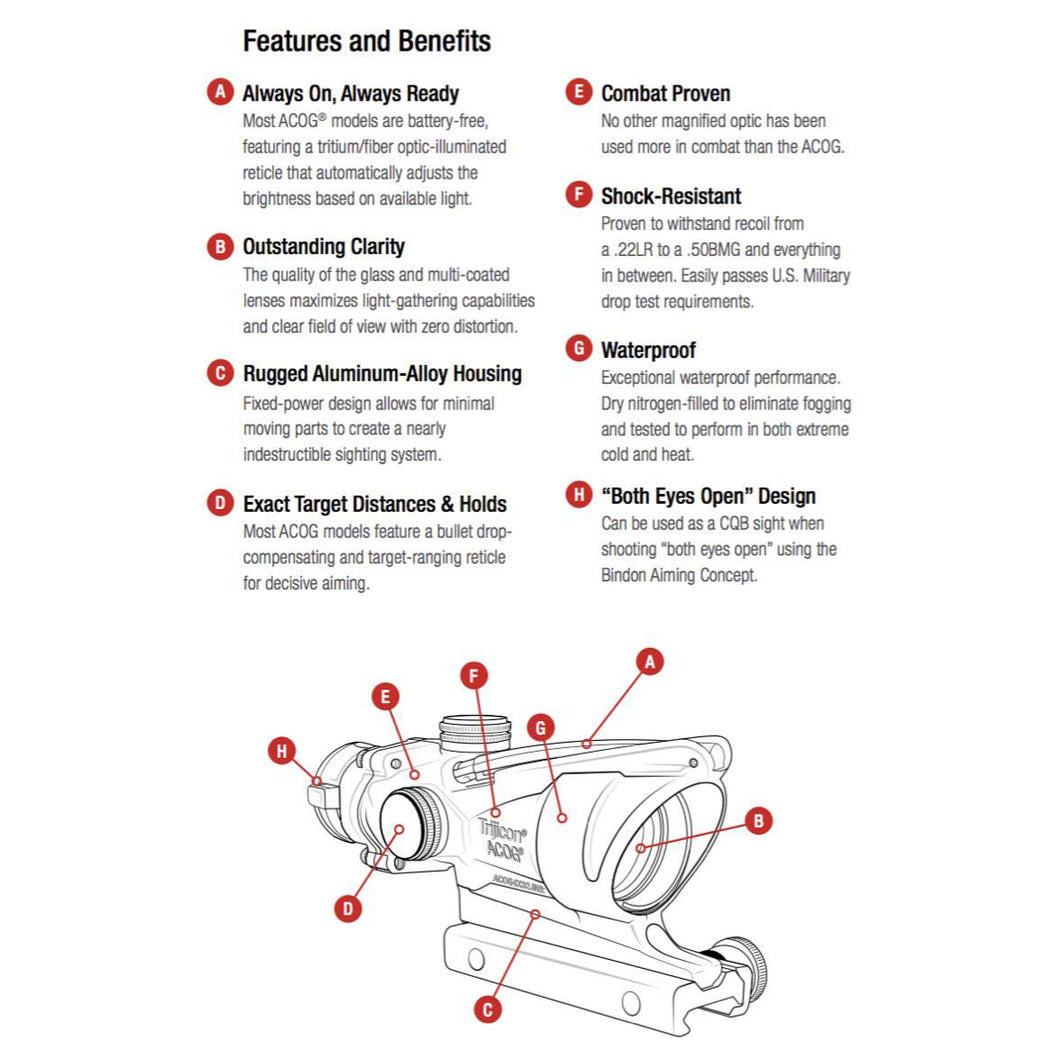

FEATURES
-
Always On, Always Ready
Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
-
Take Control
Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
-
Rugged, Reliable Housing Design
Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
-
"Both Eyes Open" Design
“Both eyes open” shooting using The Bindon Aiming Concept (BAC) allows for improved situational awareness.
-
Outstanding Clarity
The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
-
Exact Target Distances & Hold
Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
-
Combat Proven
No other magnified optic has been used more in combat than the ACOG.
-
Shock-Resistant
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
-
Waterproof
Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.
SPECIFICATIONS
-
Weight
15.1 oz. (428.08g) -
Magnification
4x -
Objective Size
32mm -
Reticle Pattern

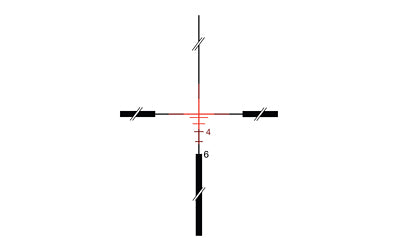

Chevron / Horseshoe Dot / Crosshair
-
Day Reticle Color
Red / Green -
Night Reticle Color
Red / Green
-
Bullet Drop Compensating (BDC)
Yes -
Caliber
0.223 / 5.56 or 6.8 SPC -
Bindon Aiming Concept (BAC)
Yes -
Illumination Source
Fibre Optics & Tritium
-
Power Source
Fibre Optics & Tritium -
Eye Relief
1.5 in. (38.1mm) -
Exit Pupil
0.32 in. (8.13mm) -
Field of View (degrees)
7° -
Field of View (feet)
36.8 ft. @ 100 yds. (12.27m @ 100m) -
Mount

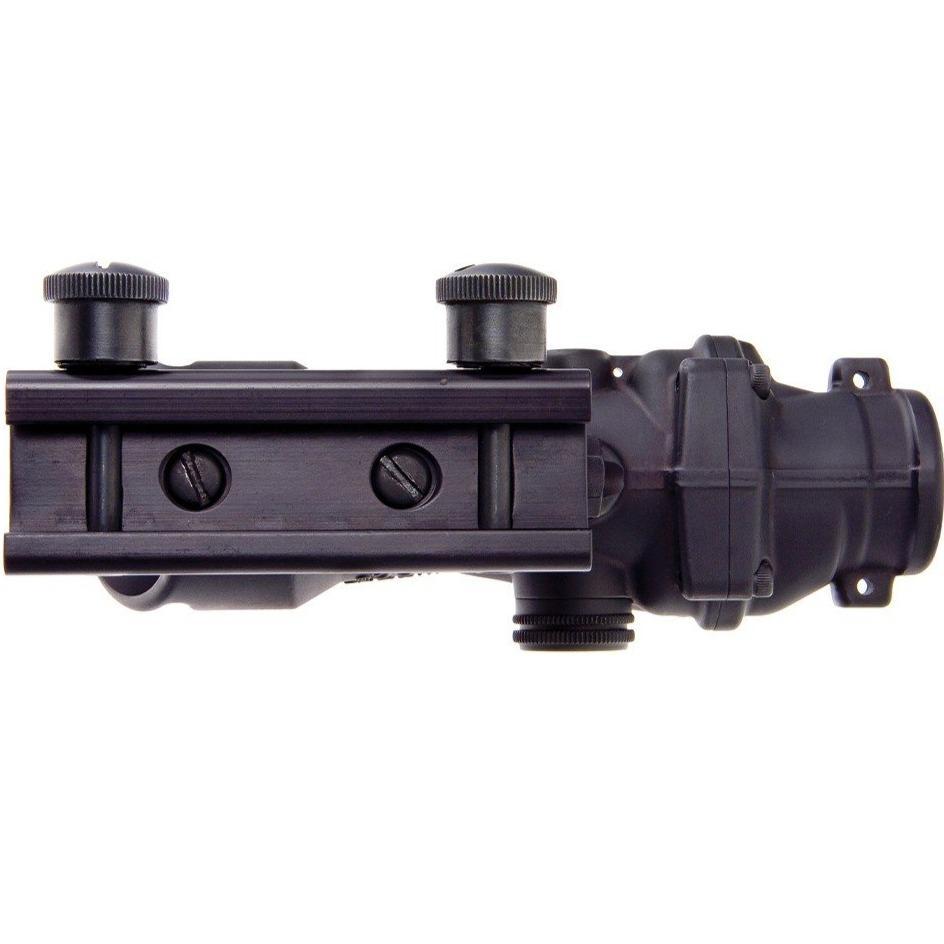

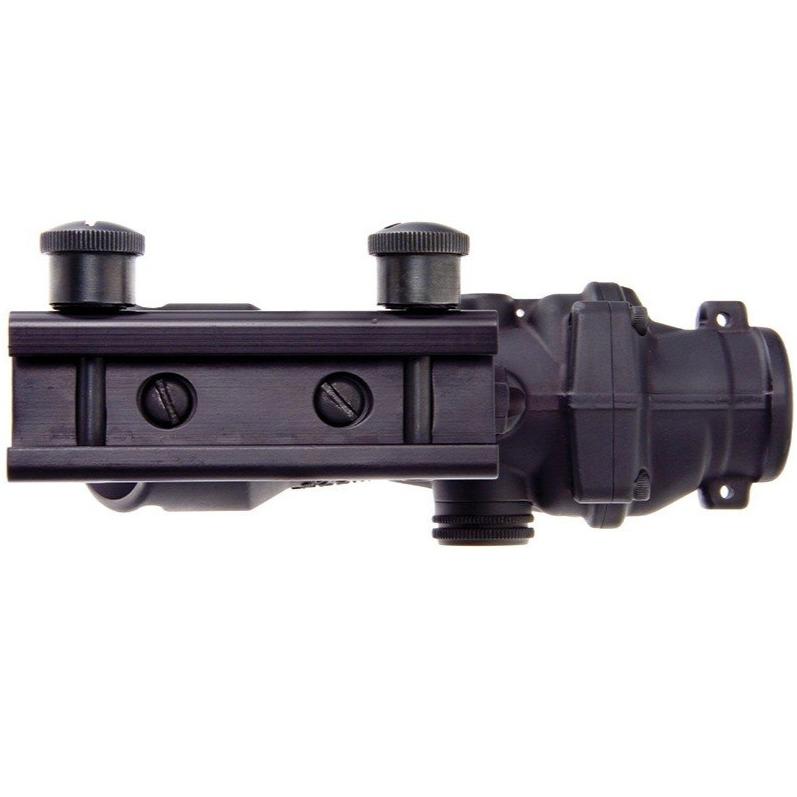

Flattop Thumbscrew Mount (TA51)
-
Housing Material
Forged Aluminium
-
Finish
Matte Black
INCLUDES
- Thumbscrew Flattop Adapter (TA51)
- 4x32 Scopecoat (TA64)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
