The Scope That Changed Everything. There's a reason the Trijicon ACOG® (Advanced Combat Optical Gunsight) is the official medium-distance engagement optic of the Marine Corps and U.S. Special Operations Forces.
This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.
Red Chevron Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated.
And there’s a reason why more than one million ACOGs have been produced. Every feature of its innovative design was chosen for a single purpose: to provide increased hit potential in all lighting conditions. This is possible through a brilliantly illuminated reticle pattern, a compact design, and legendary durability that continues to lead the industry.

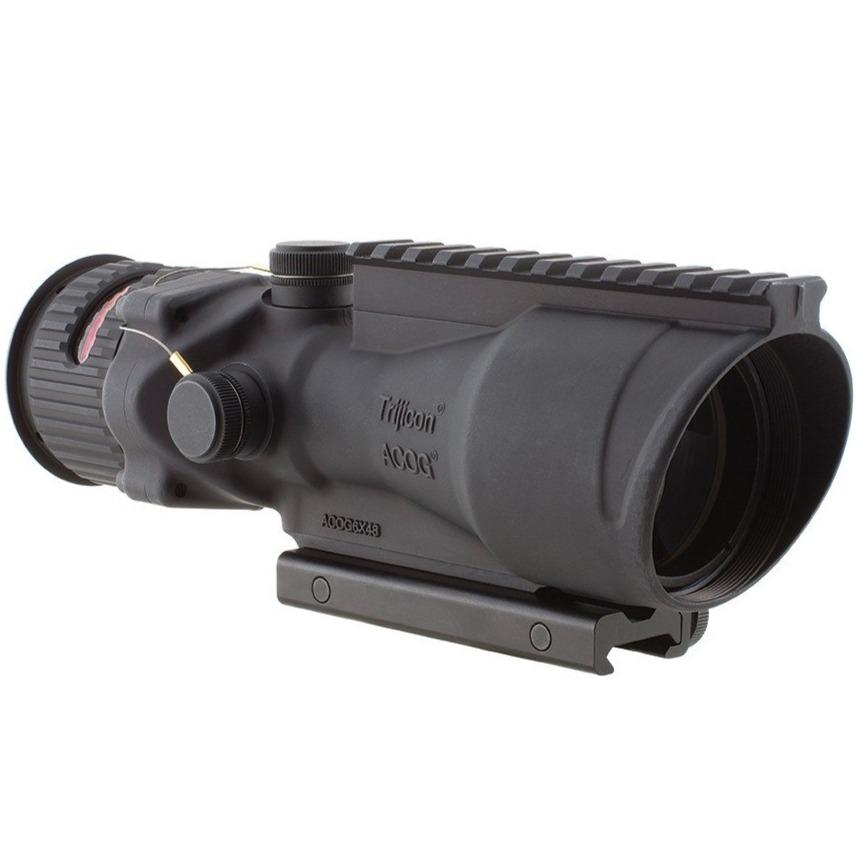

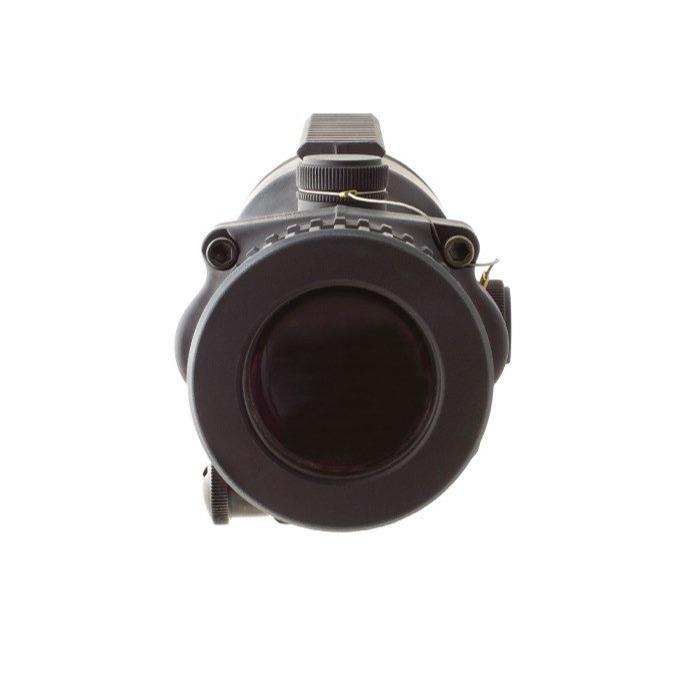

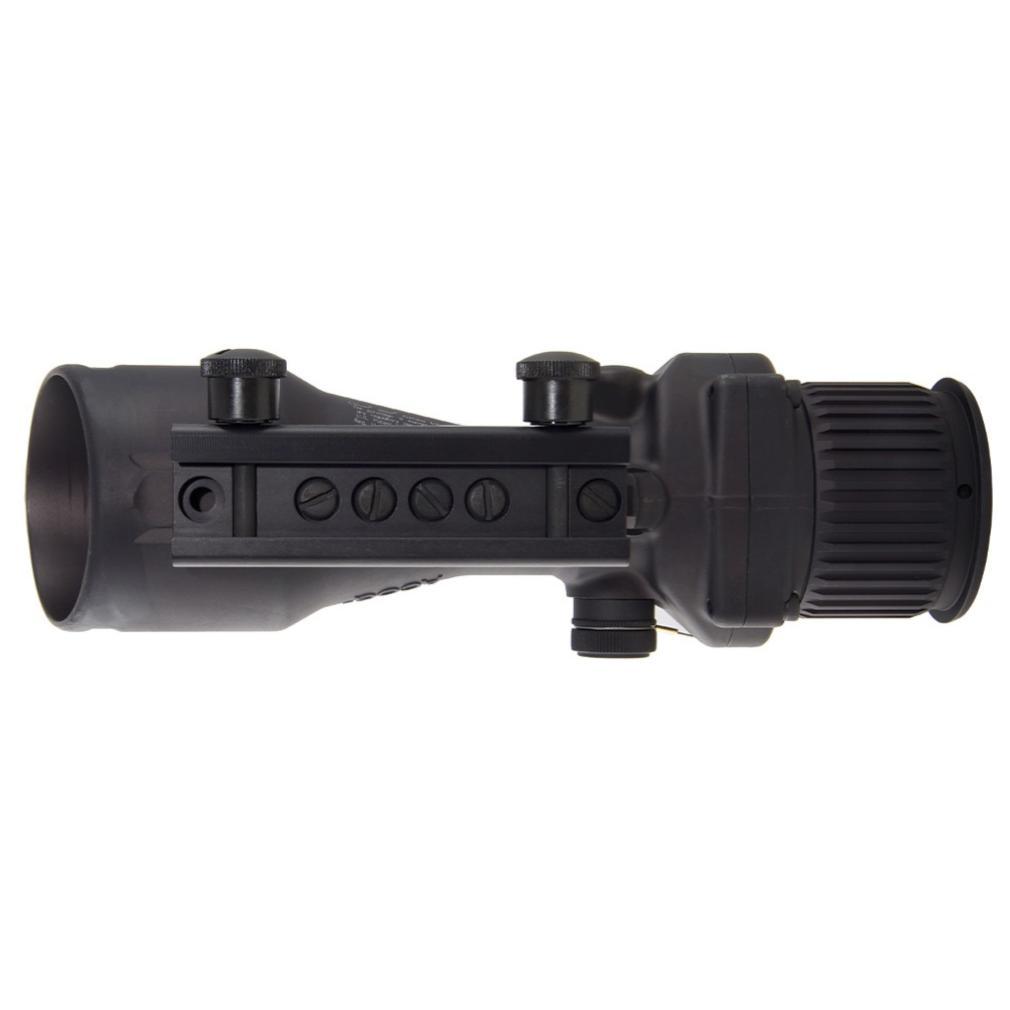

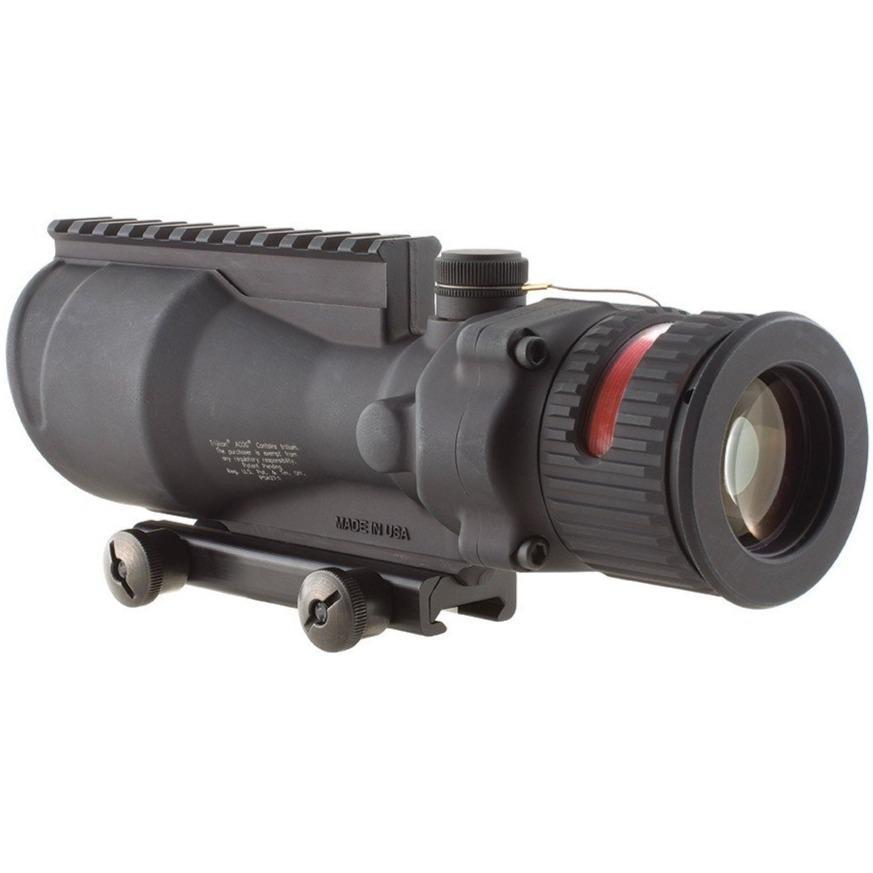

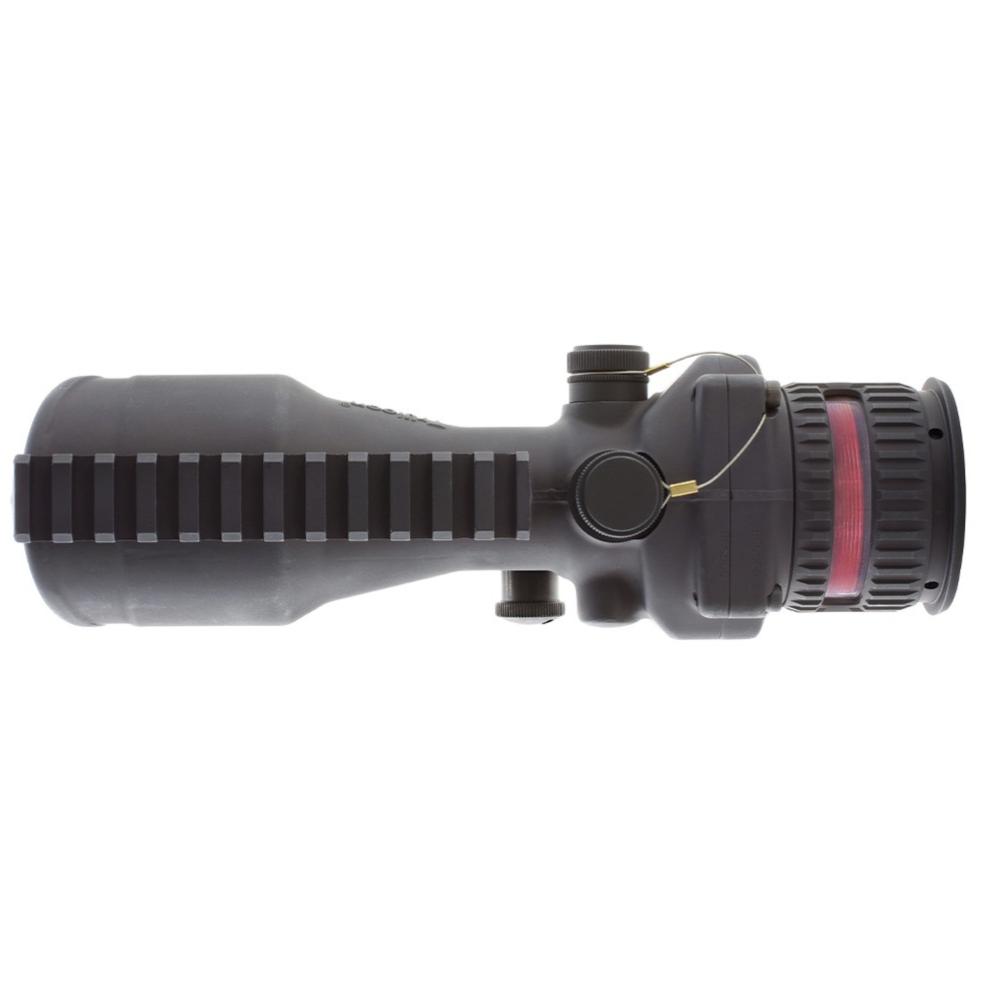

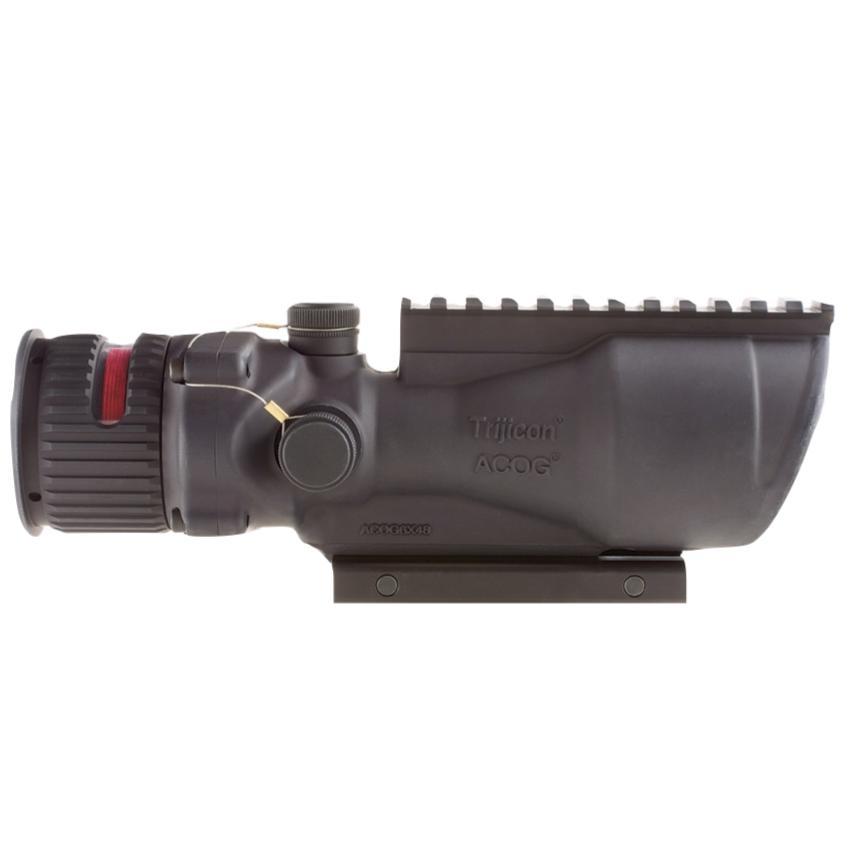

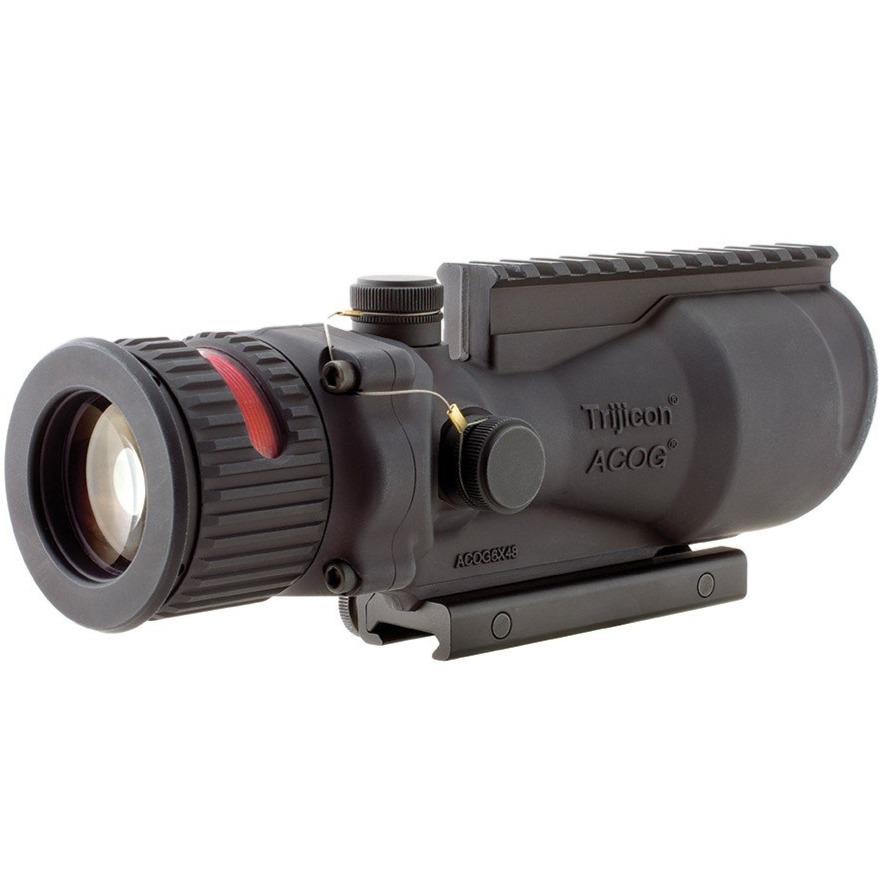

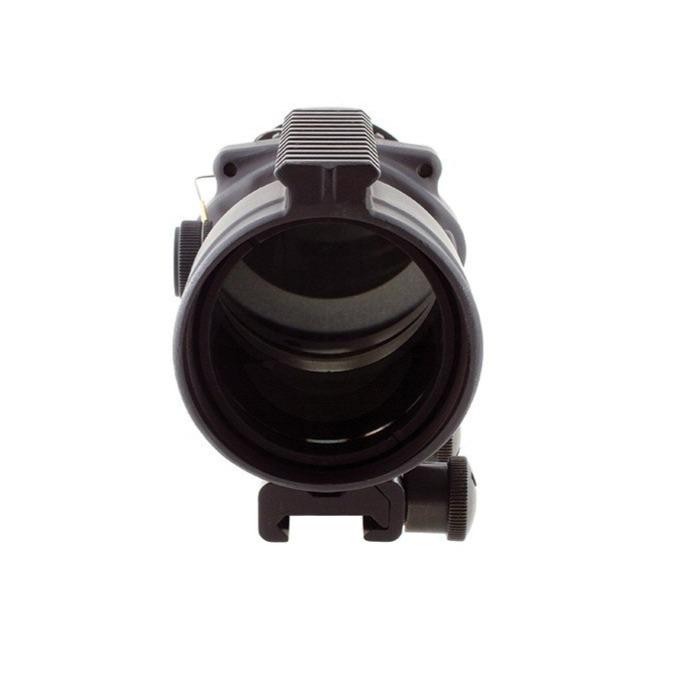

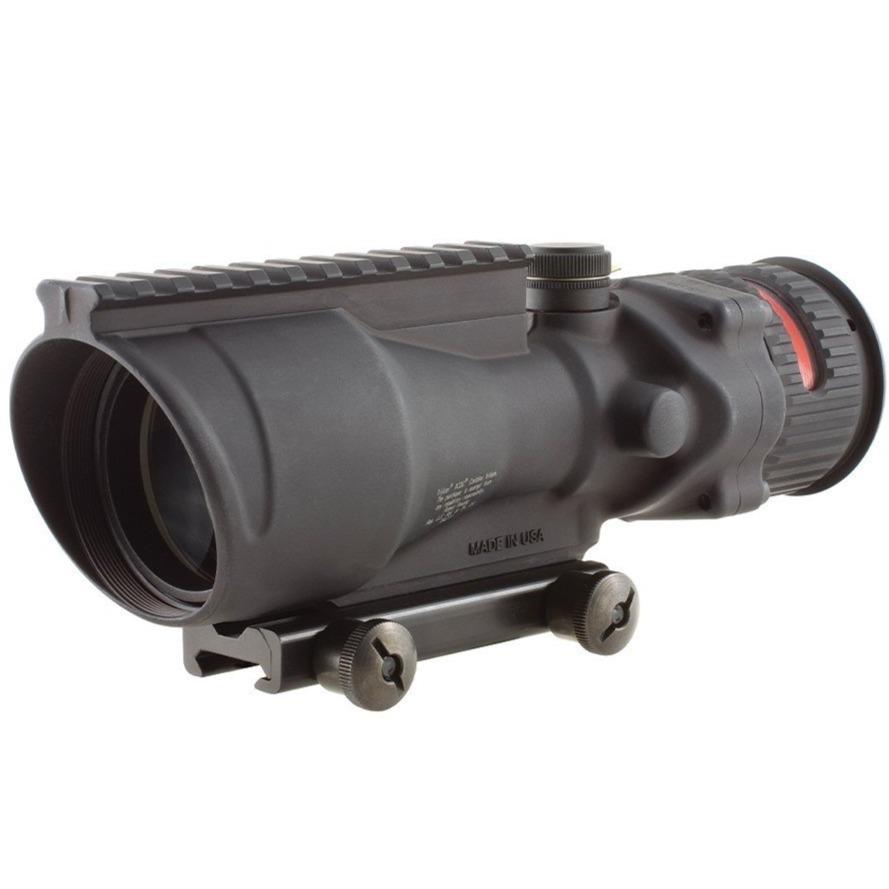

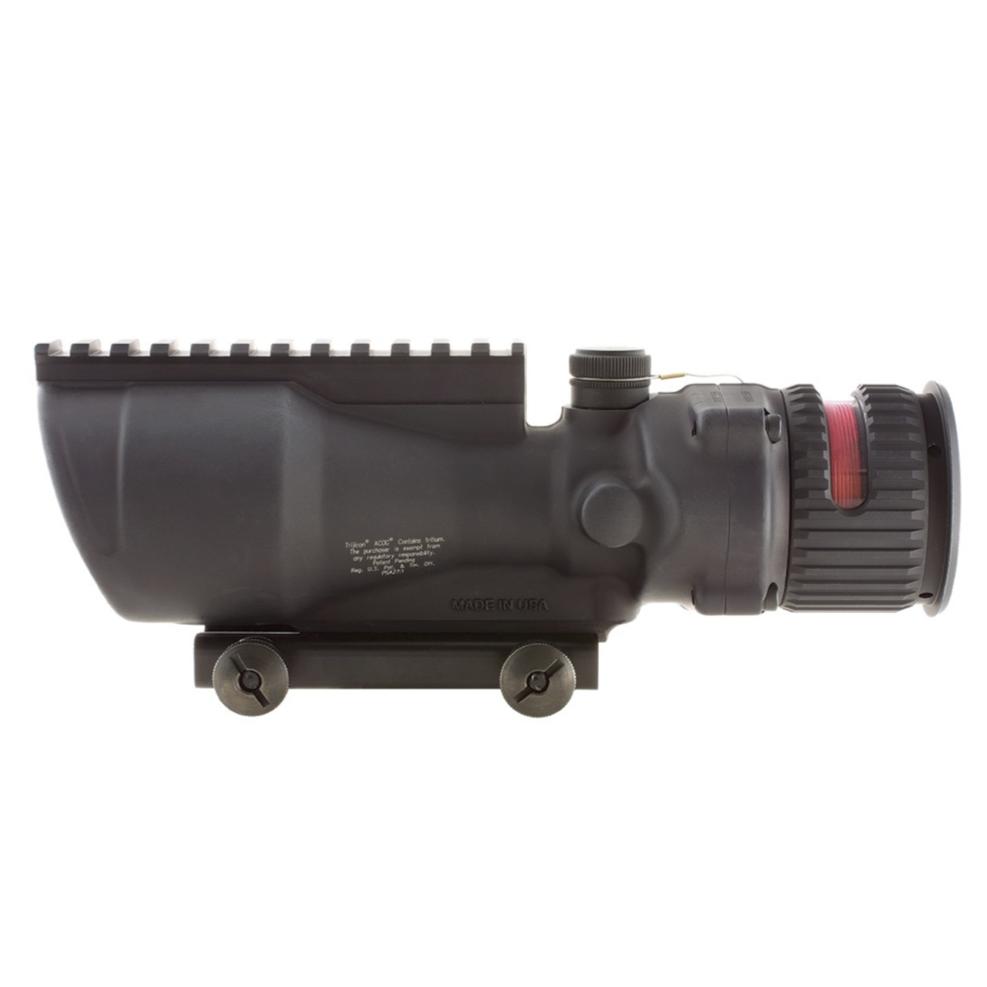

The military’s need for a magnified, self-luminous tactical sight that enhances target identification and increases hit probability on extended-range shots has given rise to the new Trijicon ACOG® 6x48. Powered by Trijicon’s patented fiber optics and tritium-based technology, the new TA648-308H ACOG® reticle features a red dot aiming point circled by a black "horseshoe." It also incorporates a bullet drop compensator (BDC) with additional aiming points estimated for trajectory of the 7.62mm M80 out to 1200 meters. To further improve target acquisition and hit potential, the new ACOG® 6x48 incorporates Trijicon’s Bindon Aiming Concept™ (BAC) – a revolutionary both-eyes-open method of aiming. Like other members of the Trijicon ACOG® line, the new ACOG® 6x48 is battery free and waterproof to 500 feet.

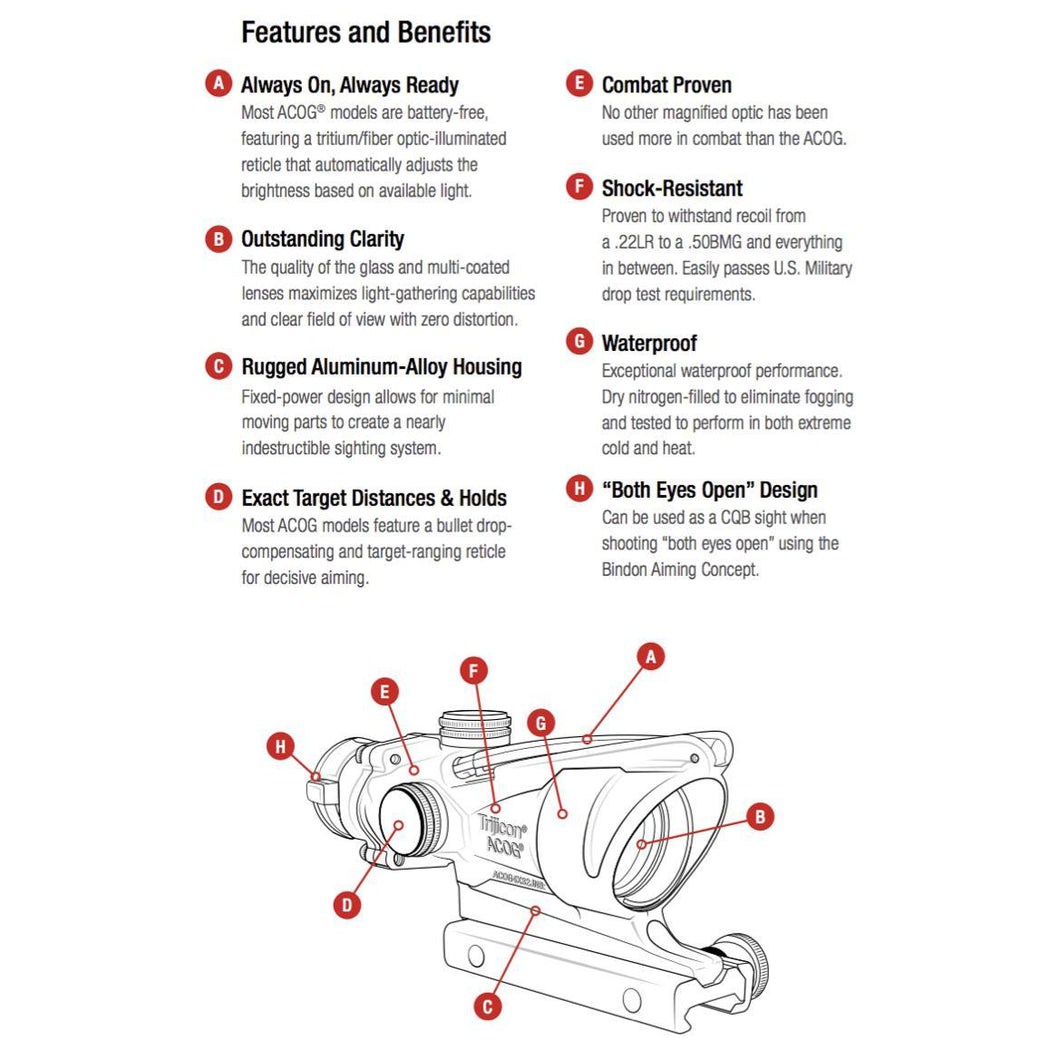

FEATURES
-
Always On, Always Ready
Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
-
Take Control
Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
-
Rugged, Reliable Housing Design
Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
-
"Both Eyes Open" Design
“Both eyes open” shooting using The Bindon Aiming Concept (BAC) allows for improved situational awareness.
-
Outstanding Clarity
The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
-
Exact Target Distances & Hold
Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
-
Combat Proven
No other magnified optic has been used more in combat than the ACOG.
-
Shock-Resistant
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
-
Waterproof
Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.
SPECIFICATIONS
-
Length x Width x Height
9 in x 2.9 in x 3.4 in
(228.6mm x 73.66mm x 86.36mm) -
Weight
39.3 oz. (1114.14g) -
Magnification
6x -
Objective Size
48mm -
Reticle Pattern
Horseshoe Dot
-
Day Reticle Color
Red -
Night Reticle Color
Red
-
Bullet Drop Compensating (BDC)
Yes -
Caliber
0.308 / 7.62 -
Bindon Aiming Concept (BAC)
Yes -
Illumination Source
Fibre Optics & Tritium
-
Power Source
Fibre Optics & Tritium -
Adjustment
4 clicks per in. @100 yards -
Eye Relief
2.7 in. (68.58mm) -
Exit Pupil
0.32 in. (8.13mm) -
Field of View (degrees)
3.3° -
Field of View (feet)
17 ft. @ 100 yds. (5.67m @ 100m) -
Mount
TA75
-
Housing Material
Forged Aluminium
-
Finish
Matte Black
INCLUDES
- Picatinny Rail Adapter (TA75)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA107)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
