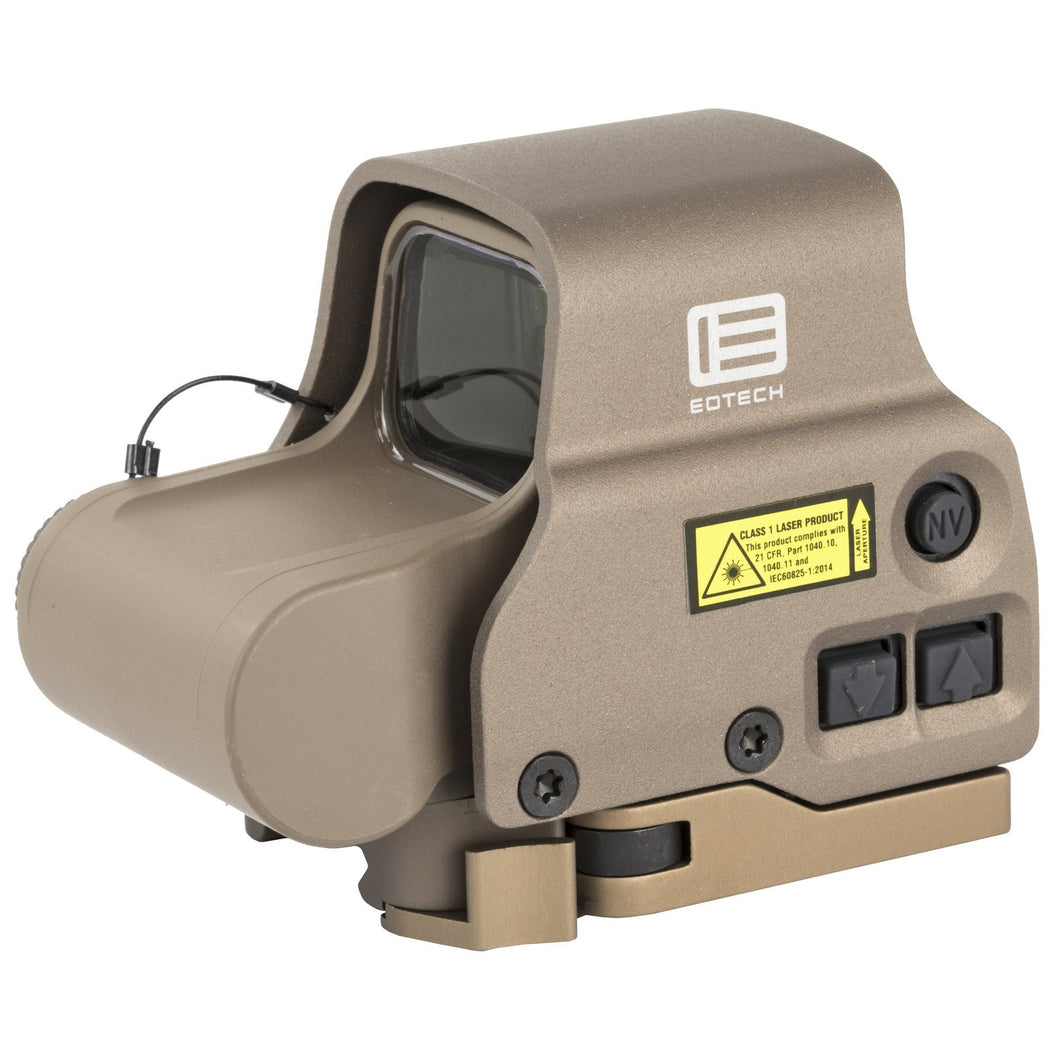

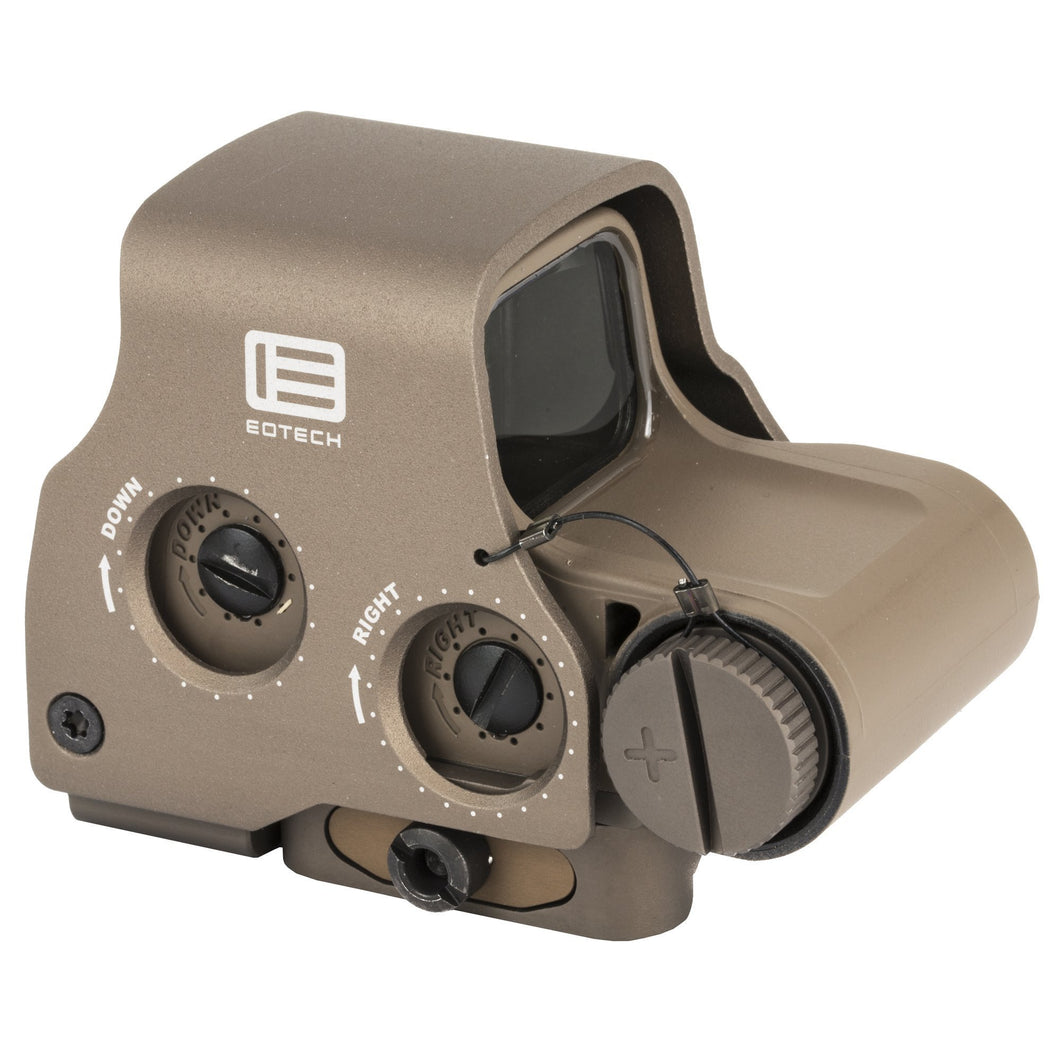

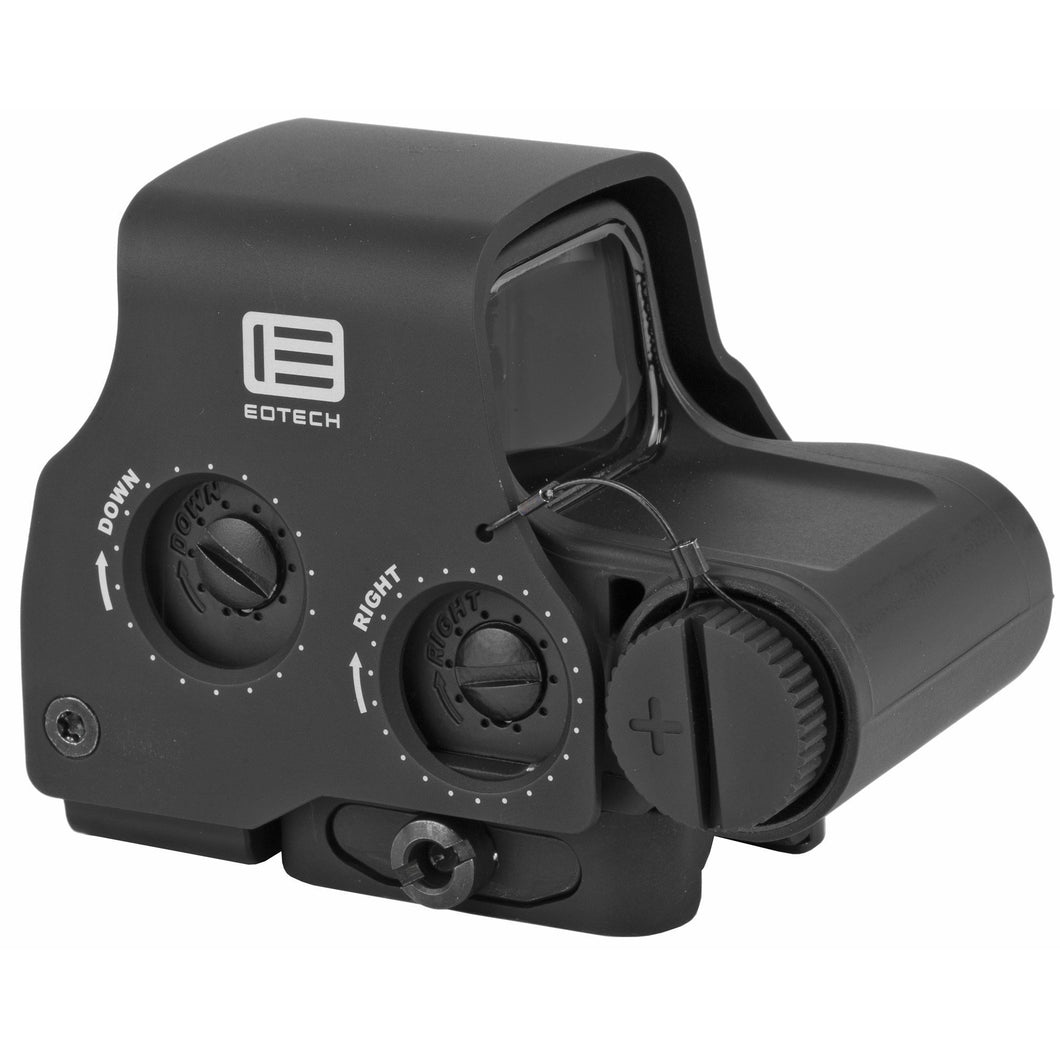

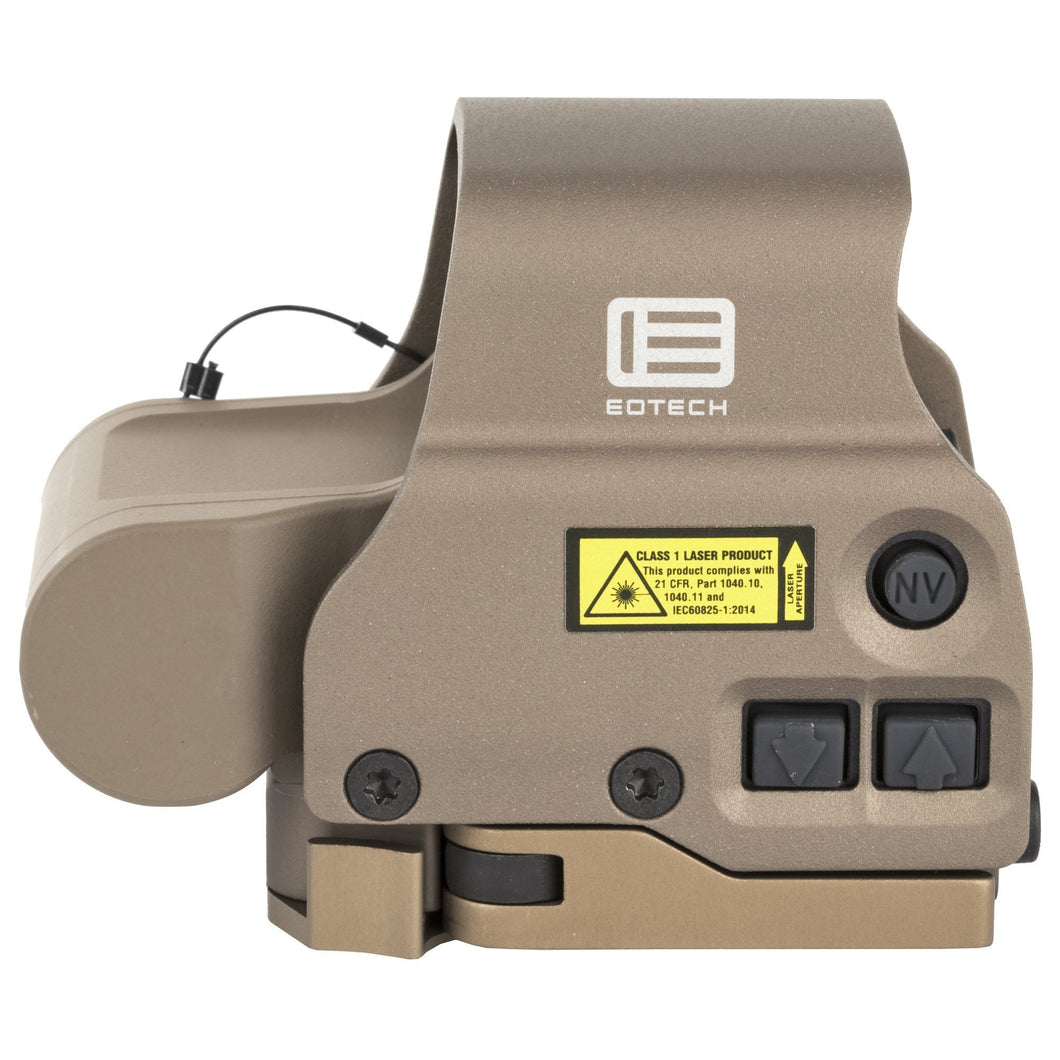

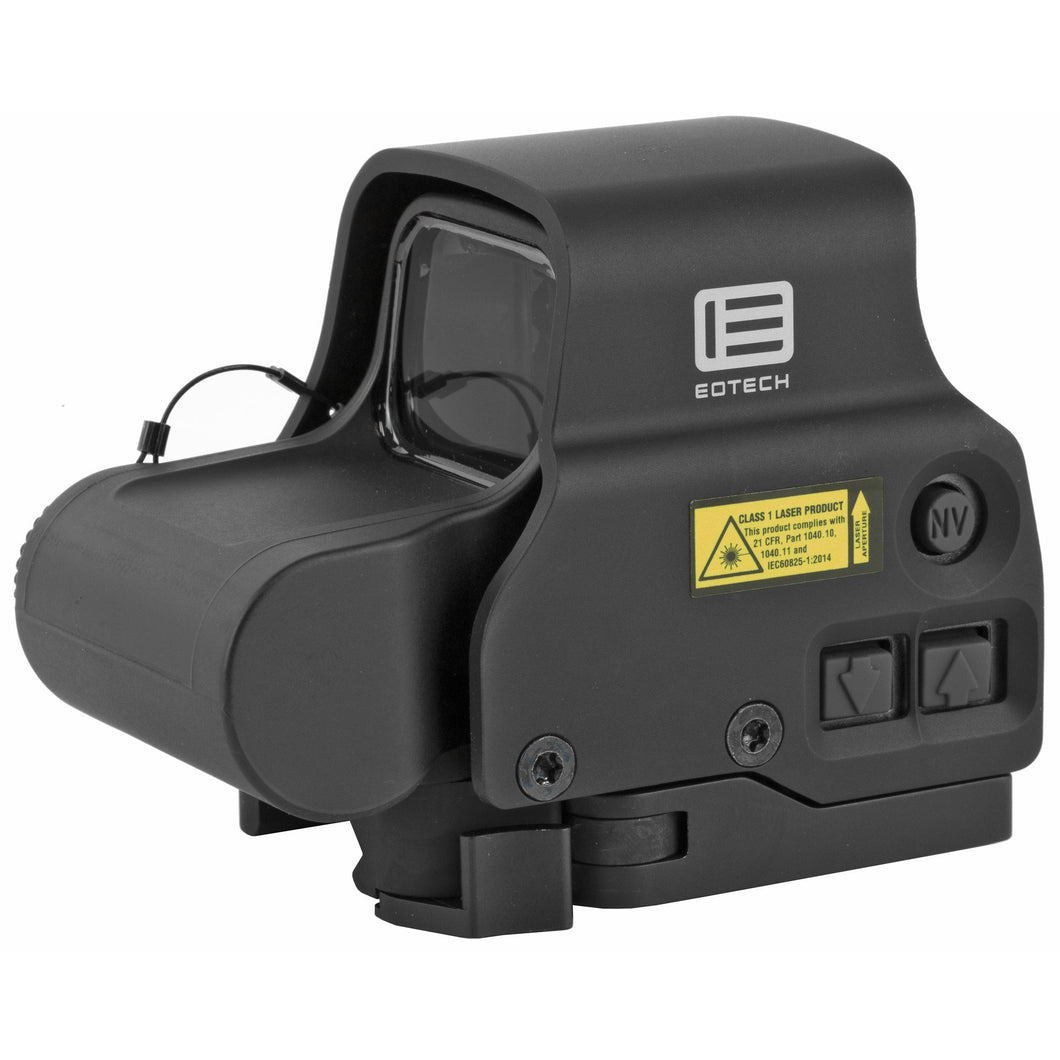

The HWS EXPS3™ is an excellent choice for professionals. The EXPS3 offers true two eyes open shooting for fast target acquisition, night vision compatible settings, and a 7mm raised quick detach base for lower 1/3 iron sight co-witness.
This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.
RETICLE OPTIONS:
EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.

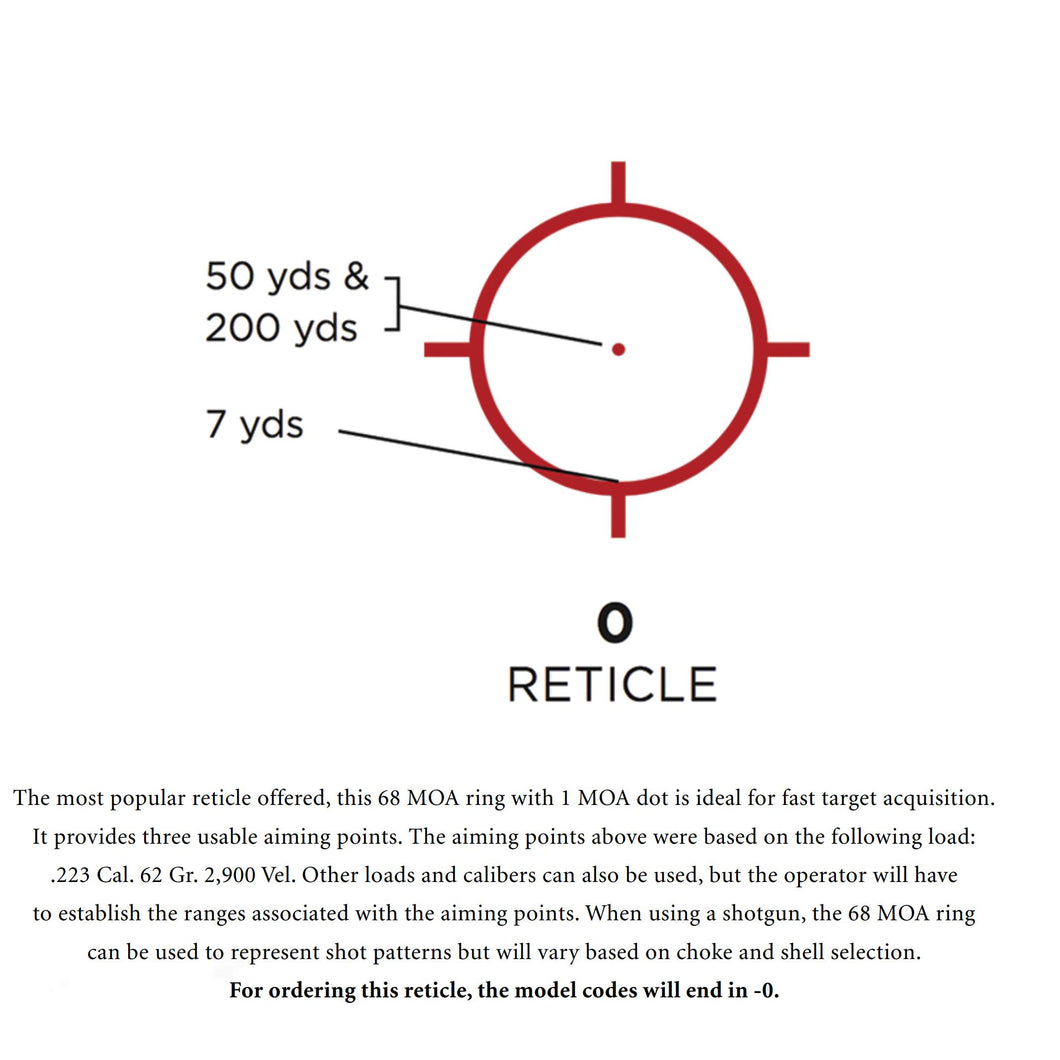

ONE DOT:
Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.
TWO DOT:
Our two-dot reticle pattern can be easily distin- guished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For ordering this reticle, the model codes will end in -2.
FOUR DOT:
Use this ballistic reticle with 5.56 Nato/.223 cal with 62 gr M855 FMJ at roughly 2,680 fps with a 14.5" barrel. For ordering this reticle, the model codes will end in -4. Aiming dots on the 4-dot reticle may not be distinguishable without magnification.
RANGE ESTIMATION WITH UNMAGNIFIED HWS:
The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.
BRIGHTNESS OPTIONS:
The EXPS3™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.
TECHNICAL SPECIFICATIONS:
-
Night vision compatible
-
3.8” x 2.3” x 2.9” (96.5 x 58.4 x 73.7 mm)
Length/Width/Height:
-
Weight:
11.2 oz (317.5 g) -
Submersible to 33 ft. (10 m) depth
Water Resistant:
-
Mount:
1” Weaver or MIL-STD-1913 rail -
Brightness:
20 daylight settings
10 additional settings for Gen I through III+ night vision devices -
Power Source:
One 123 lithium battery -
Battery Life:
600 continuous hours at nominal setting 12 at room temp
INCLUDED IN THE BOX:
- HWS EXPS3™
- Quick-Start Guide
- Warranty Card
- CR123 Battery
All EOTECH Product is designed to give many years of trouble-free performance and reliability. Nonetheless, failures do sometimes occur even with equipment as well-built as EOTECH’s. Therefore, please read the Warranty information below carefully, because it contains important information, which in the event of such a failure, may be very helpful to you.
If after reading EOTECH’s Warranty thoroughly and you have any questions, please do not hesitate to contact EOTECH directly.
Please also note, that if your Product ever does require Warranty service, obtaining such service will be much easier if you have read the Warranty that applies to your product and have completed the Product Registration.
