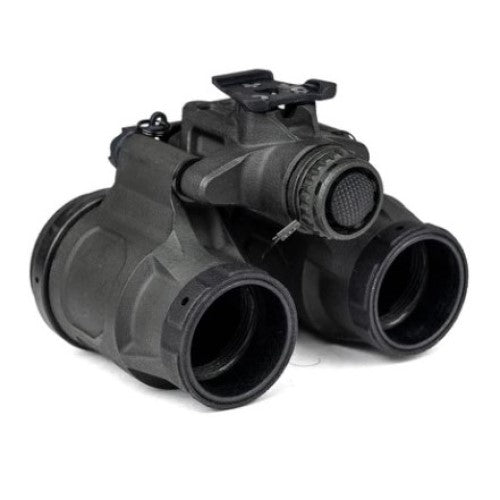

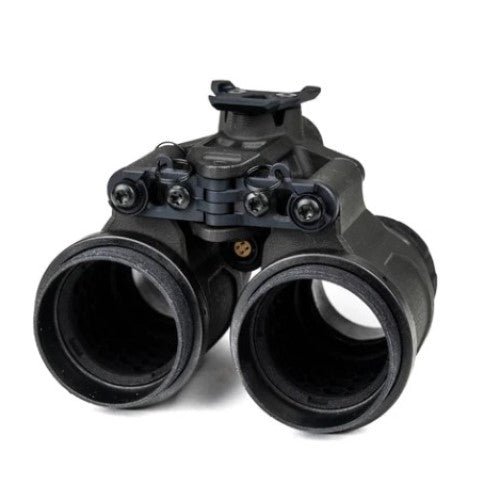

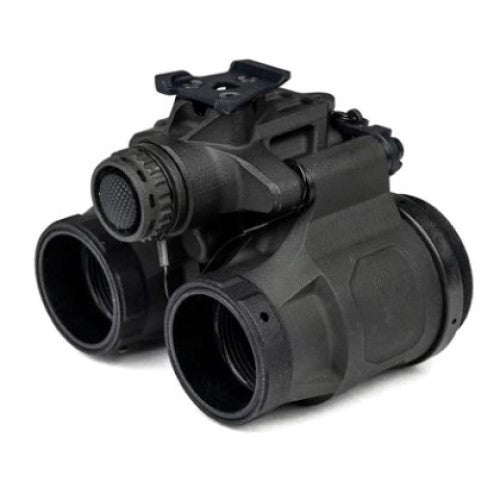

Our kick starter product and first in a series of articulating binocular devices. This is the lightest binocular on the market to date at a functional weight of 17.76 oz. fully assembled (with battery installed). The articulating design allows users to use one eye or both eyes enabling the simultaneous use of a thermal optic or other non-passive aiming systems. This also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.
*The housing will come with an infinity stop ring and tube retaining ring. Optics, IIT, close focus stop and eyepiece lock are not included with the housing. *
NOTE: The LEMO version (External Power Model) will only turn On / Off from the external battery pack when utilizing the external battery pack. It will function as normal using the units power supply button if using the CR123a.
It is simple with a minimalist design. An onboard battery with no remote power keeps things simple and wires off the helmet. Push button on/off in the cap to reduce weight and reduce the footprint of the bridge. Individual pod power on/off when articulated to the side for single or dual eye use and to eliminate backsplash when stowed or rotated out.
An original new “Friction Lock Interpupillary Adjustment” feature allows users to quickly and easily set IP stop distance with a simple rotate into place and forget design. No tools or knobs.
This unit is light weight without compromising strength. It is rugged and exceeds MIL-STD-810G plus has been drop tested to the NATO 1.5 meter drop test standard. All our products are designed and hand built in New Hampshire, USA.
FEATURES:
-
Material: Polymer
-
Color: Matte Black (Cerakote), Matte Coyote (Cerakote), Matte OD (Cerakote)
-
Weight:
(Battery + Standard Pvs-14 lenses and Image intensifiers): 17.76oz/1.11lbs/503.5g
(No Battery + RPO Pvs-14 lenses and Image intensifiers): 15.12oz/0.94lbs/428.6g -
On board power: CR123a
-
Out board Power: LEMO port
*DISCLAIMER: Do not use onboard power and remote power simultaneously. Main power controlled by battery pack when remote power is utilized. -
IR Illuminator: No
-
Pod power off when rotated to side: Yes (Individually)
-
Ingress rating: IP68
- Mount style: Dovetail
